Model No: KY-YG-6U3C

industrial joystick like mouse

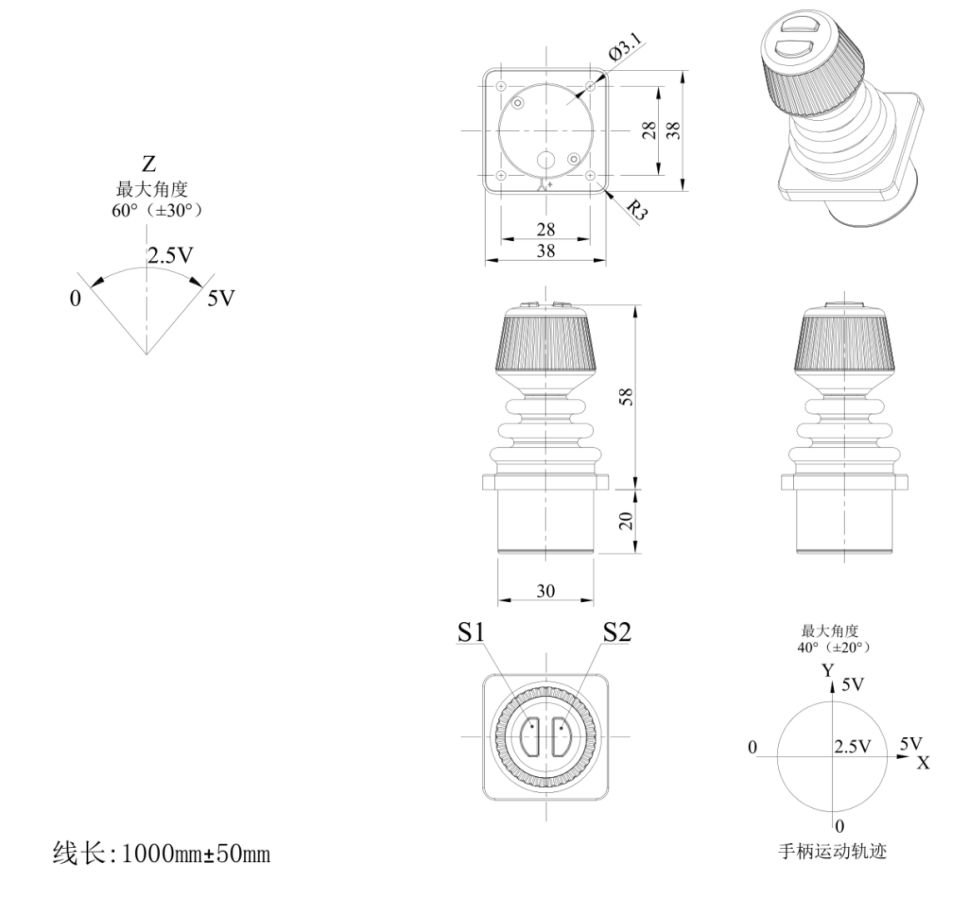

Dimension:
size:78*38mm

Features:
Stainless steel Joystick mouse
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Keys：2
Mouse with left, right buttons
The joystick can be flexibly operated by hand to locate the mouse position

Quantity :

add to cart

Contact Now

Subscribe to our Newsletter

KY-YG-6U3C is a joystick like mouse .

This joystick like mouse is made of high-quality industrial grade ABS injection molding and features a non-contact Hall sensor wrist operation design. The material is sturdy, the appearance is lightweight, the operation is convenient and flexible, it has a long lifespan, and excellent protective performance.

Joystick on mouse achieves physical multi axis signal output through handheld operation, and this product has multiple communication output specifications.

KY-YG-6U3C(joystick like mouse) Main component materials:

Fixed type: screw connection (4-M3);
Quality: Approximately 0.1KG;
Structure type: Closed type;
Shake (X, Y axis), self reset, operating force: 0-5N, ultimate destructive force 100N;
Z-axis rotational torque: 0-4Ncm, maximum torque shall not exceed 12Ncm;
Mechanical lifespan: 1 million cycles;
stainless steel ABS；

KY-YG-6U3C can also be mouse as joystick .

Mouse as Joystick can work as a joystick between the slave and host through USB communication. The slave is powered by the host through the power supply in the USB interface, and Joystick sends location information data through HID. Other interface protocols can also be customized, such as RS232

Mouse as joystick application:

Due to the intuitive directional control and continuous variable input capability of joystick like mice, especially in scenarios that require fine manipulation, multi degree of freedom collaboration, or immersive interaction, mouse as joystick is irreplaceable
