Model No: KY-PC-N380

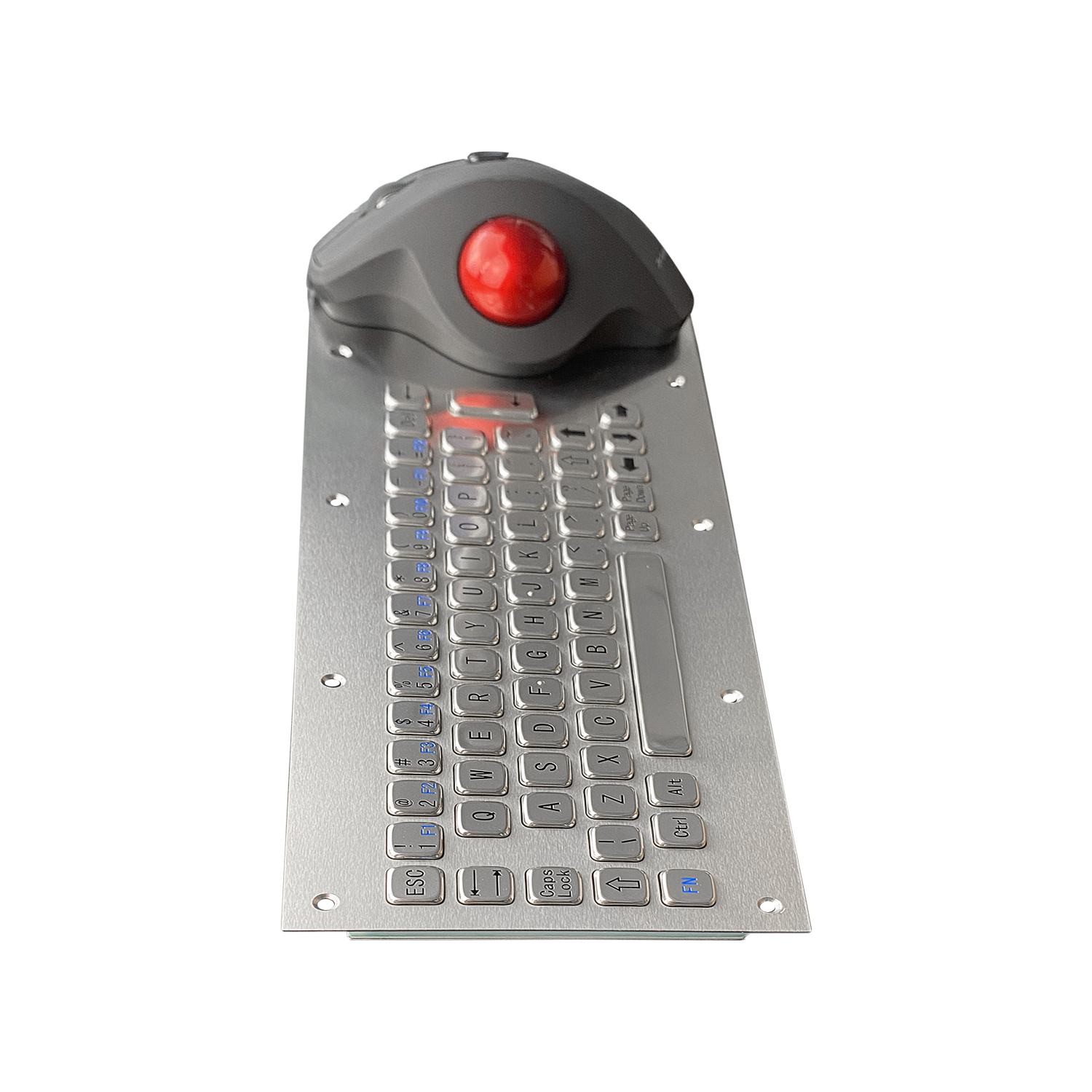

Ergonomic wired keyboard with trackball KY-PC-N380
Size:
Front panel: 380 * 180mm
Total dimensions: 380 * 180mm
Features:
Stainless steel keyboard with trackball mouse
Installation solution: Front panel mount
PCB adopts industrial immersion gold process
Stainless steel keycaps
Button text supports languages of various countries and can be customized for free
Equipped with a 34mm red trackball
With 2 left and right mouse buttons
Number of keys: 65
Front panel: 380 * 180mm
Total dimensions: 380 * 180mm
Features:
Stainless steel keyboard with trackball mouse
Installation solution: Front panel mount
PCB adopts industrial immersion gold process
Stainless steel keycaps
Button text supports languages of various countries and can be customized for free
Equipped with a 34mm red trackball
With 2 left and right mouse buttons
Number of keys: 65
Quantity :
Subscribe to our Newsletter
The KY-PC-N380 is the 65 keys stainless steel front panel mount keyboard with trackball mouse.
This front panel ergonomic keyboard with trackball is made of 304 stainless steel, which can prevent rust and violence. Mainly used in public places, industrial equipment, transportation systems, self-service, etc.
This front panel ergonomic wired keyboard with trackbal has a total of 65 keys, including F1 to F12 function keys, used in conjunction with the FN key. The trackball mouse is located on the right side of the keyboard.
The keyboard trackball layout with FN key is shown in the following figure
Ergonomic wired keyboard with trackball Features:
● The panel is made of high-quality SUS304 stainless steel, which is explosion-proof and corrosion-resistant
Embedded installation with fixed panel mounting holes
Embedded installation with fixed panel mounting holes
●SUS304 stainless steel button
● Support keyboard layouts in various countries (customized according to customer needs)
● Customizable function keys or combination keys
● Integrated high-performance trackball mouse
● Track ball mouse, rotate your fingers to operate cursor movement
● Thumb finger operation design, relaxing hand muscles
34mm red sphere
● DPI: 600/800/1200/1600, switchable in 4 gears, easy to use in combination
● USB dual line
● Keyboard surface and key color options: stainless steel natural color, black
● Customizable function keys or combination keys
● Integrated high-performance trackball mouse
● Track ball mouse, rotate your fingers to operate cursor movement
● Thumb finger operation design, relaxing hand muscles
34mm red sphere
● DPI: 600/800/1200/1600, switchable in 4 gears, easy to use in combination
● USB dual line
● Keyboard surface and key color options: stainless steel natural color, black
65 keys ergonomic wired keyboard with trackball mechanical / electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 millions |
Interface | USB |
Compatible with systems | Window XP、Window 7、Window 8、Window10、Linux、Ubuntu、Android |
Key size | 14mm*14mm*4.5/14*28*4.5/10*14*4.5mm |
Key trip | 1.5mm |
Operation force | 1.2N+/-0.1N |
Mounting way | From bottom to top, back panel fixing |
Net weight | 1.21Kg |
Gross weight | 1.36Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |

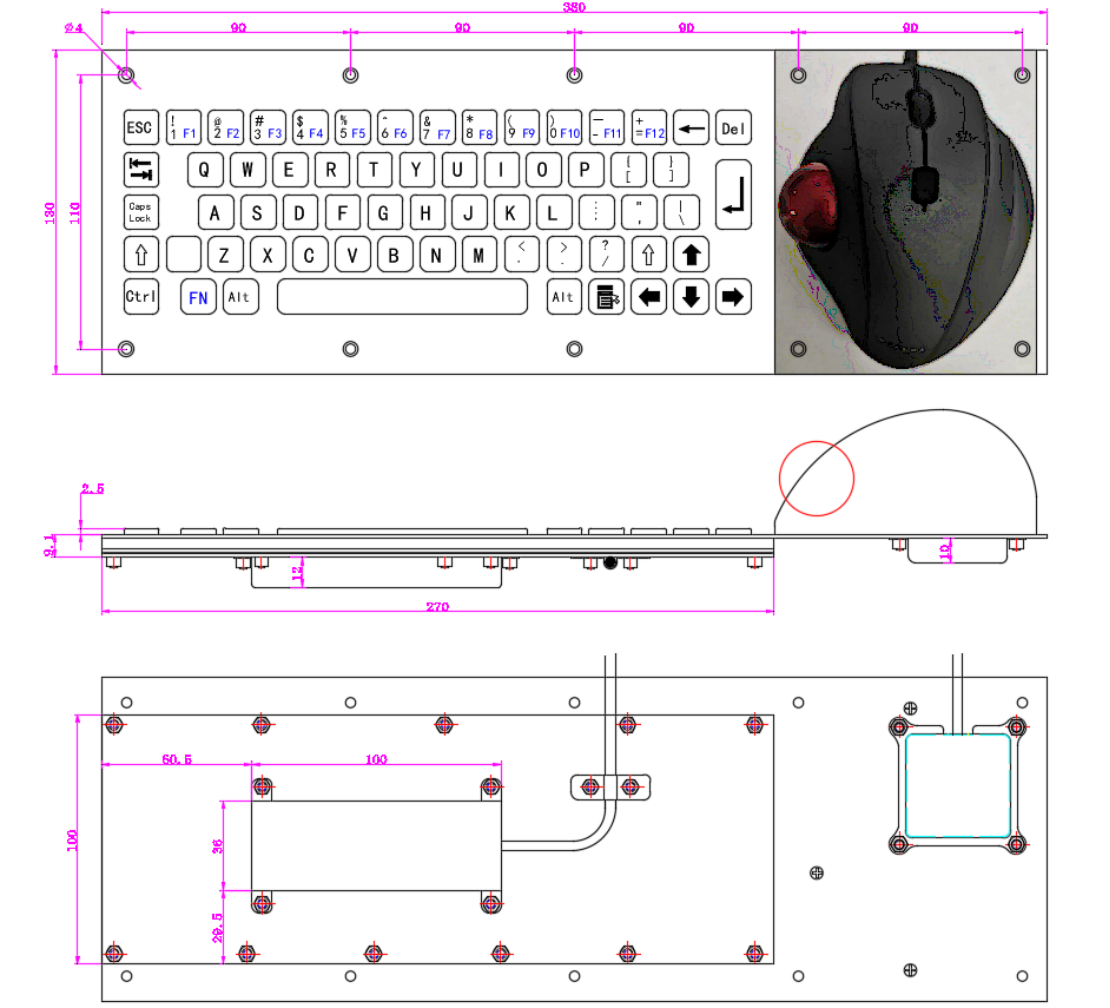

Industrial ergonomic wired keyboard with trackball dimension:
