Model No: KY2068A-LED
Stainlees steel blue led keyboard
IP65 Waterproof Stainless Steel Keyboard with blue led backlight
stainless steel keyboard with blue led dimension ：
Front Panel: 68*90 mm
Overall : 88*98*17.1 mm
12 keys stainless steel keyboard with blue led features:
Stainless Steel Buttons
Compact layout, customized for free
Laser or etching procedure for key labeling optional
backlight button key,blue LED backlit keys for dark environment use
Long service life, durability up to ≥2 million operations
stainless steel keyboard with blue led dimension ：
Front Panel: 68*90 mm
Overall : 88*98*17.1 mm
12 keys stainless steel keyboard with blue led features:
Stainless Steel Buttons
Compact layout, customized for free
Laser or etching procedure for key labeling optional
backlight button key,blue LED backlit keys for dark environment use
Long service life, durability up to ≥2 million operations
Quantity :
Subscribe to our Newsletter
12-key stainless steel keyboard with blue LED backlight.
Product Overview
This is a 12-key stainless steel keyboard with blue LED backlight, designed for embedded installation. Widely applied in unattended mechanical equipment and information terminals, including bank ATMs, telecommunication facilities, self-service printing & inquiry kiosks, public information terminals, automatic monitoring systems, security equipment, mine safety detection devices, industrial CNC platforms, testing instruments, self-payment terminals, fixed offshore platforms, industrial explosion-proof equipment, military control consoles, coal mining equipment, metallurgy, power, transportation and other industrial control industries with special requirements.
Stainless steel blue led keyboard dimensions
Front Panel: 68×90 mm Overall Size: 88×98×17.1 mm
Stainless steel blue led keyboard main features
● Front panel adopts high-quality brushed SUS304 stainless steel, explosion-proof and corrosion-resistant
● Brushed SUS304 stainless steel keys; laser engraving available for black legends
● Customizable silk-screened or etched key legends as per customer requirements
● IP65 dustproof and waterproof design
● Braille customization supported
● USB interface
● Blue led keyboard keys
Stainless steel blue led keyboard technical specifications
| Item | Parameter |
|---|---|
| Key Lifespan | >2,000,000 operations |
| Interface | USB |
| Key Dimension | 14×14×2.0 mm |
| Key Travel | 0.45 mm |
| Operating Force | 2N±0.1N (contact actuation force) |
| Mounting Method | Bottom-up panel mounting |
| Net Weight | 0.4 kg |
| Gross Weight | 0.55 kg |
| Operating Temperature | -20℃ ~ 65℃ (RH: 20%~85%, Atmospheric pressure: 60~106 kPa) |
| Storage Temperature | -30℃ ~ 85℃ (RH: 20%~90%, Atmospheric pressure: 60~106 kPa) |
| MTBF (Mean Time Between Failures) | >20,000 hours |
| MTTR (Mean Time To Repair) | <30 minutes |

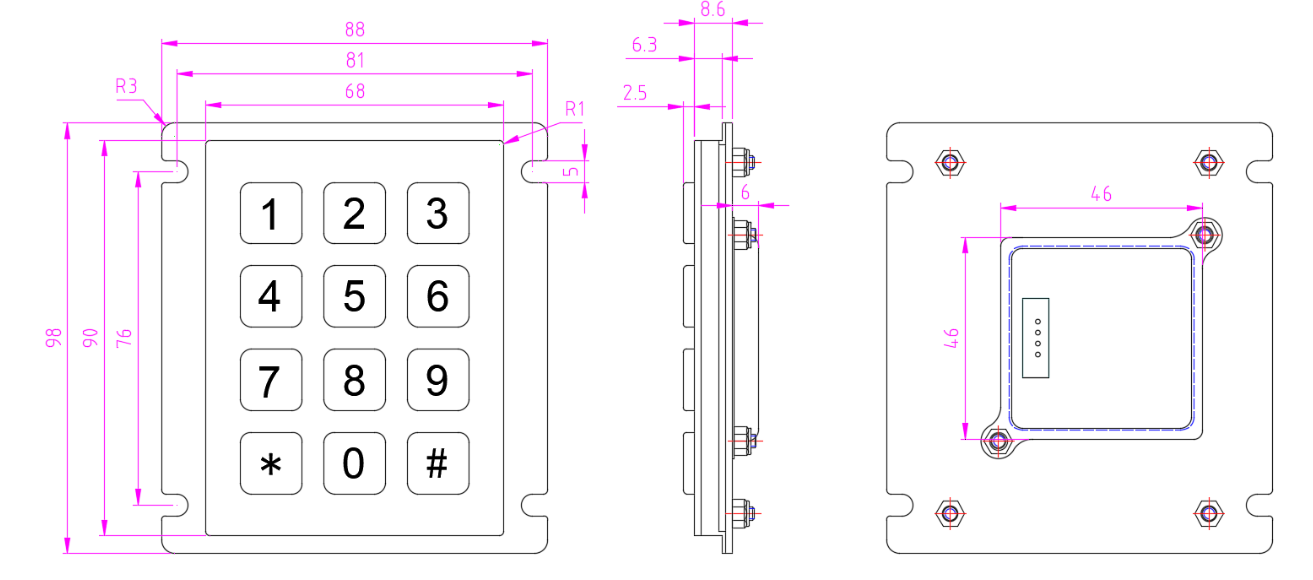

Stainless steel blue led keyboard structural diagram
