Model No: KY-PC-MT385
104 keys IP65 rugged keyboards military
Dimension:
Front Panel:385*180mm
Overall:385*180mm
Features:
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：104
with touchpad mouse
Front Panel:385*180mm
Overall:385*180mm
Features:
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：104
with touchpad mouse
Quantity :
Subscribe to our Newsletter
KY-PC-MT385 is 104 keys IP65 rugged keyboards military with trackball.
This 104 keys IP65 rugged keyboards military is a 104 acero inoxidable keys fully functional stainless steel reinforced keyboard designed specifically for harsh industrial environments, integrated with a high-precision touchpad mouse, combining durability, multifunctionality, and human-computer interaction. Adopting 304 stainless steel panel and wire drawing process, considering dustproof and waterproof performance, reaching IP65, it can be applied to finance, shipbuilding, manufacturing, medical, military, outdoor control consoles and other scenarios, and can work stably in environments with oil pollution, dust, humidity or high-frequency use.
Mechanical / Electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | ≥2 million |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14*14*4.5/14*28*4.5/100*14*4.5mm/11*10*4.5mm/20*10*4.5mm |
Key trip | 1.5mm |
Operation force | 1.2N+/-0.1N(contact force) |
Mounting way | From bottom to top, back panel fixing |
Net weight | 1.8Kg |
Gross weight | 2Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
104 keys IP65 rugged keyboards military application:(metal rugged keyboard with touchpad)
This 104 keys IP65 rugged keyboards military with touchpad combines the features of a touch keyboard and metal material. The metal keyboard with touchpad usually has the characteristics of durability and corrosion resistance, so that the keyboard has a good impact resistance. The metal keyboard with touchpad is widely used in various fields.
- Industrial automation and HMI (Human-Machine Interface) systems
- Material handling and logistics terminals
- Communication equipment
- self-service terminal equipment field
- Medical equipment and cleanroom environments
- Outdoor kiosks and self-service stations Military and defense equipmen
104 keys IP65 rugged keyboards military customized Function Description of Keyboard Layout
1. Comprehensive Multilingual Support
Language Compatibility: The keyboard is engineered to support a vast array of national languages, including but not limited to English, French, German, Spanish, Portuguese, and Russian. This ensures seamless communication and typing for users across different linguistic backgrounds.
Dynamic Language Switching: Facilitates effortless switching between languages with intuitive key combinations (e.g., Ctrl+Shift or dedicated language keys), enabling multilingual users to maintain productivity without interruption.
2. Bilingual Keycap Engraving & Layout Options
Bilingual Keycaps: Physical keycaps are designed to accommodate bilingual engravings, such as English+Korean, English+Russian, or English+Persian. This feature is particularly useful for bilingual users who frequently switch between languages during their work or daily activities.
Layout Versatility: Offers both European (ISO) and American (ANSI) keyboard layouts, ensuring compatibility with different regional standards and user preferences.
3. Internet/Symbol Shortcut Keys
High-Frequency Characters: Includes dedicated physical keys or combination keys for quick input of commonly used internet and symbol characters, such as"www","http://",".com", and"@". This feature accelerates web browsing, email composition, and other digital tasks.
Customizable Shortcuts: Allows users to personalize shortcut keys to suit their specific workflow, enhancing efficiency and reducing typing errors.

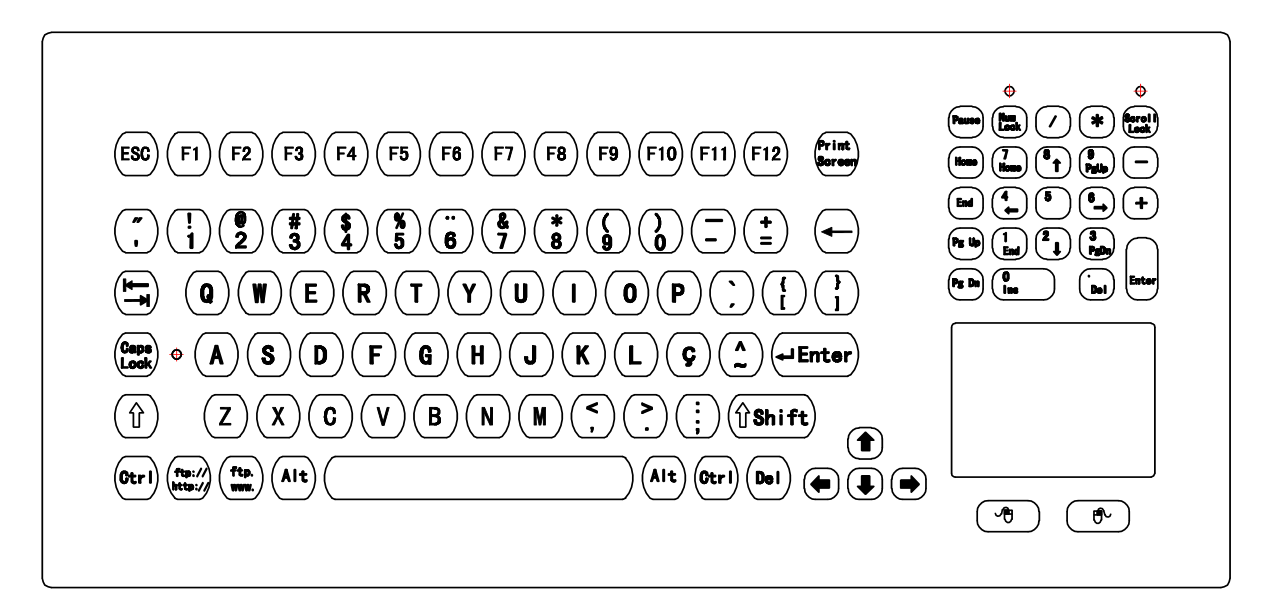

The layout diagram in Portuguese language is shown below, and the customer has customized the special function keys they want for this interface.
4.The choice of keyboard layout:
QWERTY keyboard and AZERTY keyboard are two classic systems that are respectively adapted to different language habits and input scenarios. The QWERTY layout originated from the design of English typewriters, with key arrangement that balances finger movement trajectory and mechanical stability. It has now become a mainstream standard worldwide, especially suitable for daily input of English and most European languages. The AZERTY layout is optimized specifically for French speakers, placing commonly used letters (such as A, Z, E, etc.) in more accessible positions, significantly improving French input efficiency. Users can make choices when placing an order.
5. Special Industry Customization (Blocking Function)
Finance/Healthcare: The keyboard can be configured to disable the Windows key or lock the Caps Lock key, preventing accidental interruptions during critical tasks. This feature is particularly valuable in industries where precision and focus are paramount.
Industrial Scenarios: In industrial settings, pressing Fn+Esc can trigger an emergency stop command, ensuring safety in high-risk environments. This functionality can be customized to meet specific industry requirements.
6. Single-Key Language Switching
Instant Language Switch: Users can switch between languages with a single key combination (e.g., Ctrl+Shift), eliminating the need for multiple keystrokes or menu navigation. This feature is ideal for multilingual professionals who need to switch languages frequently during their workday.
User-Friendly Interface: The language switching mechanism is designed to be intuitive and easy to use, ensuring a seamless transition between languages without disrupting the user's workflow.

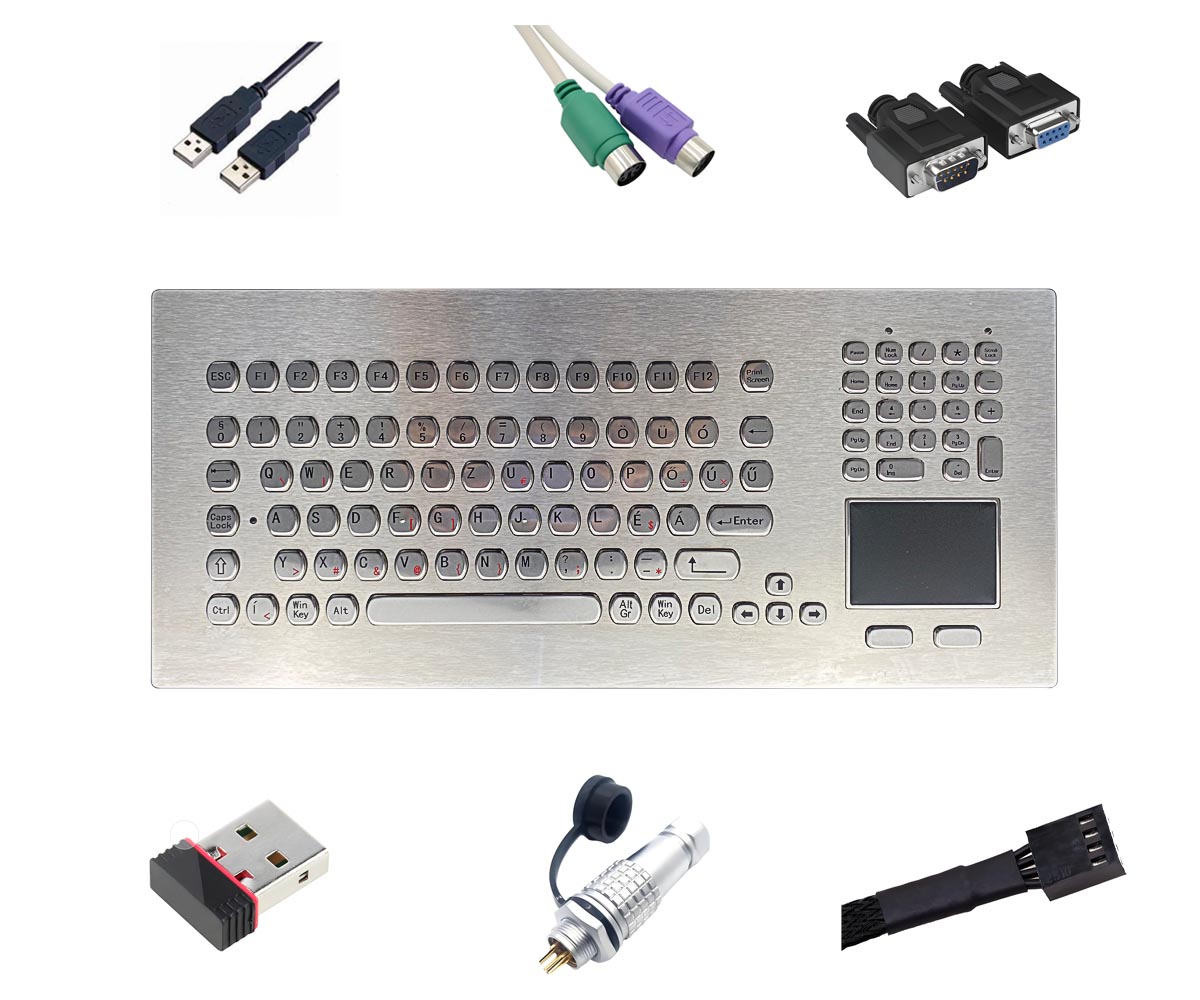

The 104 keys IP65 rugged keyboards military can choose different interfaces:
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
There are universal USB cable lengths of 2.5 meters, 4 meters, and 0.6 meters (other lengths can be customized).
There are two magnetic rings online to enhance anti-interference performance.

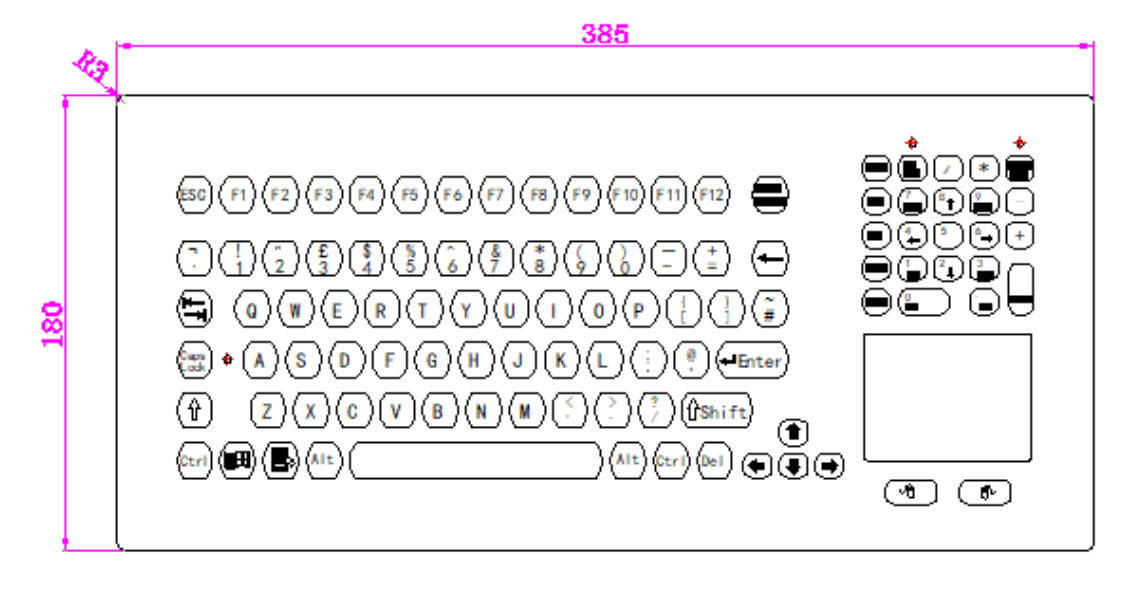

104 keys IP65 rugged keyboards military dimension:
