Model No: KY-TB-A160
best industrial big touchpad
Dimension:
Front Panel:200*185mm
Overall:100*224*209 mm
Touch area: 156*95mm
Features:
Stainless steel mouse
Mounting Solution: Flat desktop solution
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Keys：2
Mouse with left, right buttons
Equipped with highly sensitive sensors that can accurately capture the movement trajectory of fingers
Front Panel:200*185mm
Overall:100*224*209 mm
Touch area: 156*95mm
Features:
Stainless steel mouse
Mounting Solution: Flat desktop solution
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Keys：2
Mouse with left, right buttons
Equipped with highly sensitive sensors that can accurately capture the movement trajectory of fingers
Quantity :
Subscribe to our Newsletter
KY-TB-A160 is an industrial big touchpad made of stainless steel material.
The big touch pad 's 304 stainless steel panel brushed treatment, with a more exquisite appearance.
Toucpad with 2 metal buttons for completing left and right mouse button functions.
KY-TB-A160 ‘s touchpad is a customized touch pad mouse designed with a bigber touch area than conventional touchpads. It allows special applications to be used without being limited by narrow areas, making operation more convenient and accurate. It is your best choice for big touchpad products.
Industrial touchpads are usually made of industrial-grade materials and designs with strong durability and interference resistance.
The installation method of the big touchpad adopts the rear panel installation, with a metal box on the back that can seal the electronic components of the PCBA.
This big touchpad adopts a full speed USB 2.0 interface, which is plug and play and easy to use,factory equipped with a 2.5-meter USB cable,other lengths of USB cables can be customized to match the best use of the big touchpad.
Big Best Touch pad Mechanical / Electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 million |
Interface | PS/2 OrUSB |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14mm*14mm*2mm |
Key trip | 0.45mm |
Operation force | 3N ± 10% |
Mounting way | From the bottom up, the bottom plate is fixed |
Net weight | 1.1Kg |
Gross weight | 1.3Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Best industrial big touchpad Application:
Industrial touchpad plays a very imortant role , industrial big touchpad widely used in self-service vending machines, self-service kiosks, intelligent storage express.cabinets, military equipment and other fields.

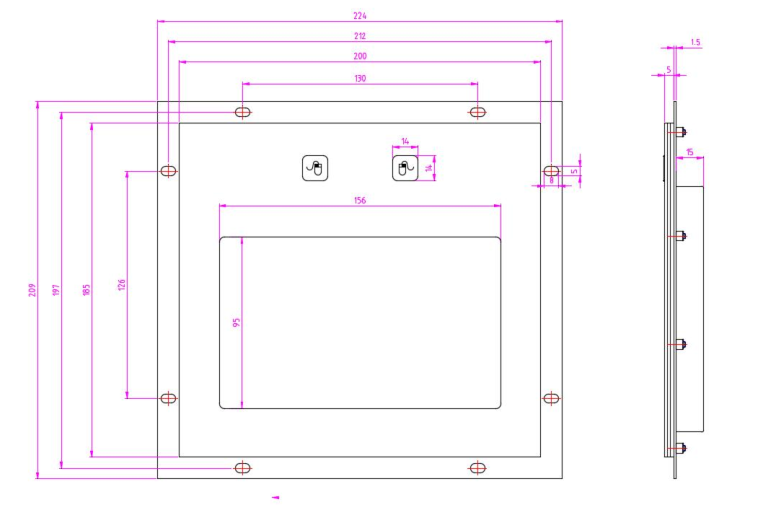

Industrial big best touch pad dimension:
