Model No: KY-PC-BT
Computer keyboard with touchpad for PC KY-PC-BT
Dimension:
Front Panel:392*110 mm
Overall:392*110 mm
Touchpad:392*110*40.2 mm
Features:
Stainless steel keyboard
Mounting Solution: Base plate mounting
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Number of keys：66
Mouse：touchpad
Comes with left and right mouse button function
Touchpad supports two-finger swiping to achieve the scroll wheel function
Front Panel:392*110 mm
Overall:392*110 mm
Touchpad:392*110*40.2 mm
Features:
Stainless steel keyboard
Mounting Solution: Base plate mounting
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Number of keys：66
Mouse：touchpad
Comes with left and right mouse button function
Touchpad supports two-finger swiping to achieve the scroll wheel function
Quantity :
Subscribe to our Newsletter
KY-PC-BT is 66 keys industrial computer keyboard with touchpad for PC .
The button 304 of this PC keyboard with touchpad is stamped and formed from stainless steel, and the film is laser welded to ensure a secure connection that is not easily detached. It is a flat key keyboard with a brushed surface on the keycap, giving it a high-end metallic texture.
The keyboard is equipped with a touchpad on the right side, which enables mouse positioning function through finger sliding. It is easy to operate, precise in positioning, and also has left and right mouse button functions.
This computer keyboard with touchpad layout can be customized and supports various languages such as English, Russian, Portuguese, German, Spanish, etc.
The keyboard is equipped with a touchpad on the right side, which enables mouse positioning function through finger sliding. It is easy to operate, precise in positioning, and also has left and right mouse button functions.
This computer keyboard with touchpad layout can be customized and supports various languages such as English, Russian, Portuguese, German, Spanish, etc.
Industrial computer keyboard with touchpad for PC mechanical / electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 millions |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14*14*2.0/14*28*2.0/100*14*2.0mm |
Key trip | 0.45mm |
Operation force | 1.2N+/-0.1N |
Mounting way | From bottom to top, back panel fixing |
Net weight | 1.6Kg |
Gross weight | 1.8Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Industrial computer keyboard with touchpad for PC Application:
A keyboard with a touchpad mouse features an integrated design that saves space and provides stability with durability and sturdiness. The all stainless steel keyboard is impeccable and can be widely used in special fields such as industry, transportation, self-service equipment, navigation, coal mining, oil fields, etc.

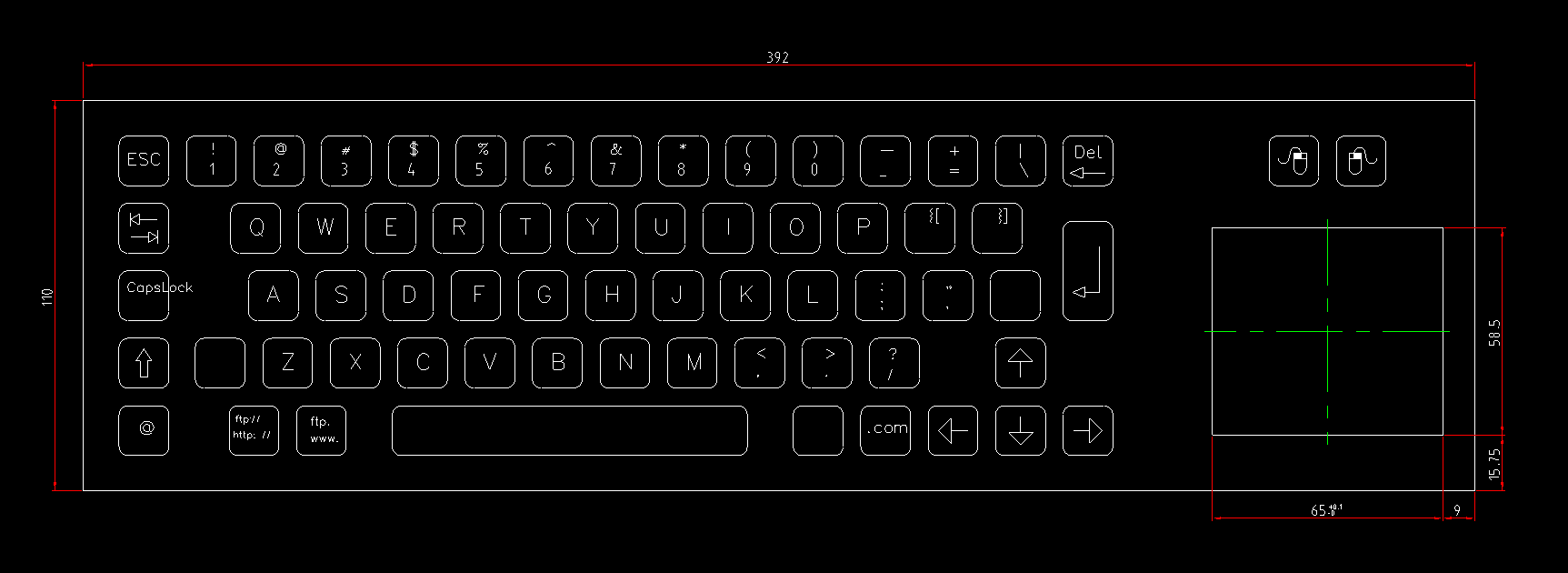

Industrial computer pc keyboard with touchpad dimension
