Model No: KY-2045B
Custom modbus RS485 metal keypad KY-2045B
Dimension:
Front Panel:45*35 mm
Overall:65*35 mm
Features:
Mounting Solution: Rear floor installation
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：6
Interface: RS485
Front Panel:45*35 mm
Overall:65*35 mm
Features:
Mounting Solution: Rear floor installation
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：6
Interface: RS485
Quantity :
Subscribe to our Newsletter
Custom modbus RS485 metal keypad made of SUS304 high quality stainless steel ,suitable for special populations.
This 6 keys SUS304 brushed stainless steel RS485 metal keypad uses gold-plated spring plates as key switches for longer service life. It is designed specifically for industrial control equipment, combining excellent durability with exquisite appearance. Every detail reflects our ultimate pursuit of industrial aesthetics and functional practicality, providing a reliable and elegant user interaction experience for your device.
RS485 keypad mechanical / Electrical data:
Power Supply | 5~24V |
Working Current | <70mA |
Durability | >200万次 |
Interface | RS485 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Size | 10mm*10mm*2.0mm |
Key Trip | 0.45mm |
Operation Force | 3N ± 10% |
Mounting Way | Rear mounting |
Net weight | 0.1Kg |
Gross weight | 0.2Kg |
Operating Temperature | -20℃~60℃（Relative Humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative Humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Features of custom modbus RS485 metal keypad
- Adopting food grade SUS304 stainless steel integrated molding, corrosion-resistant and wear-resistant
- Fine brushed surface technology, combining tactile comfort and anti fingerprint properties
- Durable structural design, capable of withstanding high strength, frequent use, and extreme environments
- Button support with Braille, suitable for amblyopia
- IP65 level sealing protection, effectively preventing liquid infiltration
- Special sealing ring design and internal waterproof layer structure
- Can operate stably in humid, dusty, and temperature varying environments
- Flexible customization of interface text: supports various processes such as etching, laser engraving, screen printing, etc
- Further communication distance
- Due to it is customized, it is more in line with practical application scenarios
Custom modbus RS485 metal keypad Application:
High High quality stainless steel keyboards are widely used in special fields such as access control, storage cabinets, libraries, industry, communication, military, power, national defense, and petroleum.
High High quality stainless steel keyboards are widely used in special fields such as access control, storage cabinets, libraries, industry, communication, military, power, national defense, and petroleum.
- Vending machine: resistant to high-intensity use in public places, with a perfect appearance that blends into the commercial environment
- Outdoor interactive devices: can effectively waterproof and operate stably
- Industrial control panel: resistant to oil, dust, and corrosion, suitable for factory workshop environments
- Outdoor battery powered express cabinet
- Self service terminal: an ideal choice for payment machines, ticket vending machines, and inquiry machines
- Medical equipment interface: easy to clean and disinfect, meets strict hygiene standards
- Access control: secure and stable input

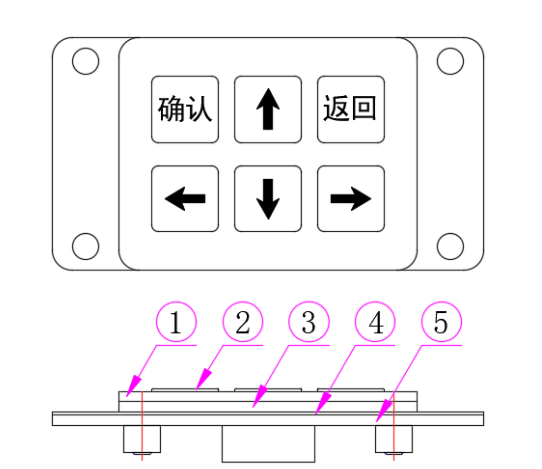

Custom modbus RS485 metal keypad structural diagram
