Model No: KY-2088B138A
16 KEYS vending machine key pad with numbers
Dimension:
Front Panel:138*142mm
Overall:138*142*27.5 mm
Features:
Mounting Solution: Front panel installation
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：16
Front Panel:138*142mm
Overall:138*142*27.5 mm
Features:
Mounting Solution: Front panel installation
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：16
Quantity :
Subscribe to our Newsletter
KY-2088B138A is 16 KEYS vending machine number pad
This industrial key pad with numbers is made of 304 stainless steel, which is waterproof and dustproof.
This metal numeric keypad interface adopts a matrix,1*16.Other matrix scanning methods can be customized, such as 4 * 4, 2 * 8, etc.
key pad with numbers Mechanical / Electrical Data：
Power supply | 5V±5% |
Working Current | <150mA |
Durability | >2Million |
Interface | Matrix |
Compatible With System | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key Size | 14*14*1.5mm |
Key Trip | 0.45mm |
Operation Force | 3N±10% |
Mounting Way | Front Mounting |
Net Weight | 0.4KG |
Gross Weight | 0.45KG |
Operating Temperature | -20℃~60℃（Relative Humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative Humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
| MTBF | >2000 hours |
pduct type：metal keypad,metal numeric keypad,industrial keypad
Vending machine number pad Application:
Key pad with numbers widely used in various unsupervised mechanical equipment or information terminals, such as bank self-service deposit and withdrawal service equipment, telecommunications, self-service order inquiry machines, self-service terminals, public information inquiry equipment, automated monitoring, security equipment, mine safety detection, industrial PC numerical control platforms, instrument detection equipment, self-service payment machines, fixed offshore platforms, industrial explosion-proof equipment, military control consoles, coal mining equipment, metallurgy, electricity, transportation, and other industries with special requirements for industrial control.

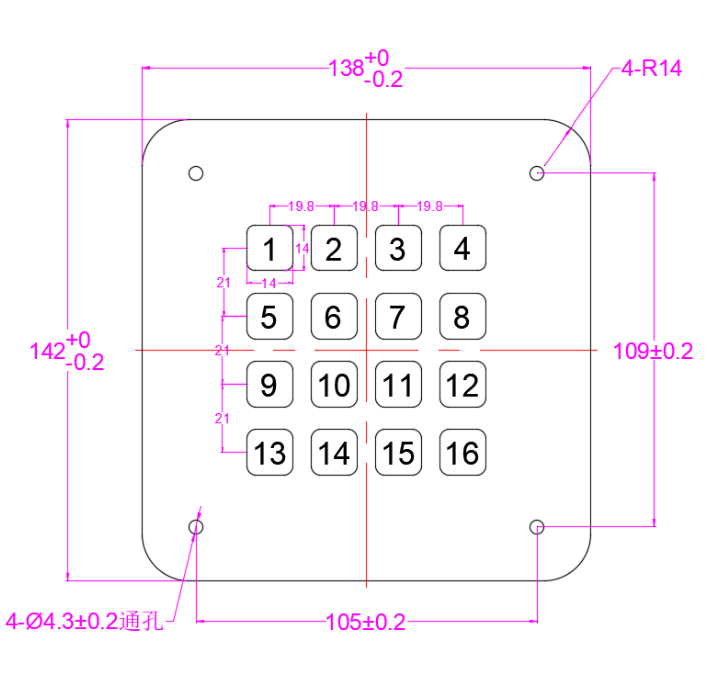

Vending machine number pad Structure Diagram
