Model No: KY-PC-H-DESK-BL
65 keys desktop black best custom mechanical keyboard KY-PC-H-DESK-BL
Dimension:
Front Panel: 392.5*149.5 mm
Overall:392.5*149.5*42.6 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Stainless steel keyboard
Mounting Solution: Flat desktop solution
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：65
Mouse：Mechanical trackball
Comes with left and right mouse button function
Front Panel: 392.5*149.5 mm
Overall:392.5*149.5*42.6 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Stainless steel keyboard
Mounting Solution: Flat desktop solution
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：65
Mouse：Mechanical trackball
Comes with left and right mouse button function
Quantity :
Subscribe to our Newsletter
KY-PC-H-DESK_BL is a 65 keys desktop black best custom mechanical keyboard.
This desktop stainless custom mechanical keyboard is a desktop installation design,and integrate a 38mm mechanical trackball mouse.It is the best choice for cabinets with limited space.
The metal mechanical keyboard adopts mechanical switches, which are comfortable in elasticity and sensitive in contact. The keycaps are made of stainless steel material stamped and installed on the mechanical switches, and their durability can protect the keyboard,is a best design.
The characters on the keycaps can be customized and support languages from different countries, such as English, Chinese, French, Russian, Persian, Portuguese, etc.
The mouse adopts a mechanical mouse with flexible rotation, and a 32-bit MCU processes position changes to achieve precise positioning and simple operation
Black custom mechanical keyboard mechanical / electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 millions |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14mm*14mm*8.5/23.5*14*8.5/33*14*8.5mm/118.5*14*8.5mm |
Key trip | 4mm |
Operation force | 2N ± 10% |
Mounting way | Desktop |
Net weight | 2.25Kg |
Gross weight | 2.45Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |

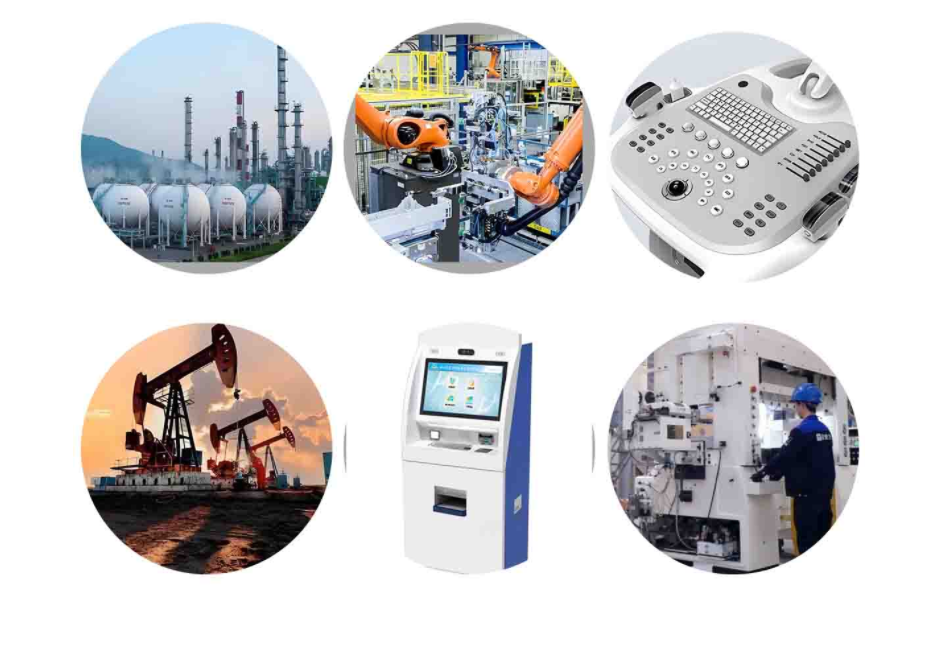

Best metal mechanical keyboard application:
Desktop mechanical keyboards can be applied in industries, agriculture, finance, transportation, maritime, self-service, aerospace, and other fields.(desktop stainless keyboard with trackball application)

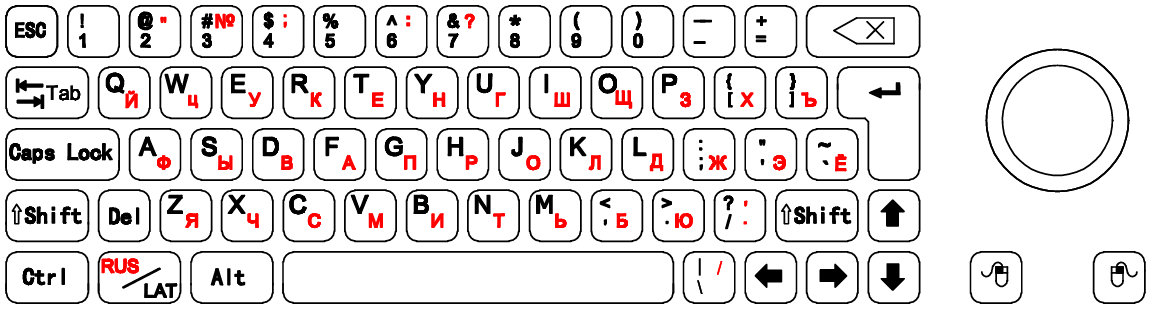

Customized Function Description of Keyboard Layout
1. Support different national languages: English, French, German, Spanish, Portuguese, Russian, etc
2. Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3. Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4. FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
2. Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3. Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4. FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
5. Special industry customization (blocking function): finance/healthcare (disable Win key or lock CapsLock)
Industrial scenario (Fn+Esc triggers emergency stop command).
6. Support single key language switch: ctrl+shift.
6. Support single key language switch: ctrl+shift.

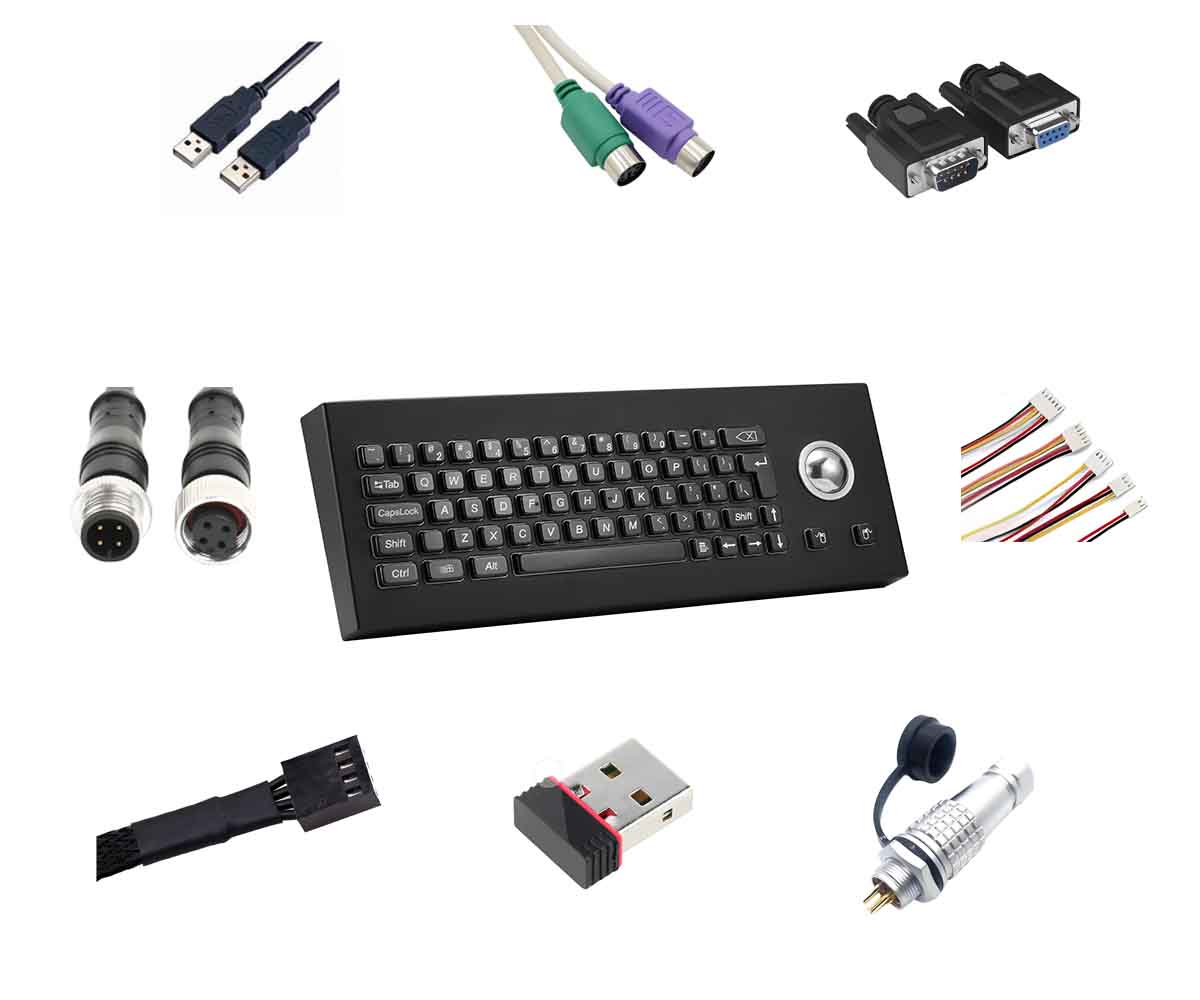

The black custom mechanical keyboard can choose different interfaces:
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(4) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(5) Customize other interfaces according to requirements

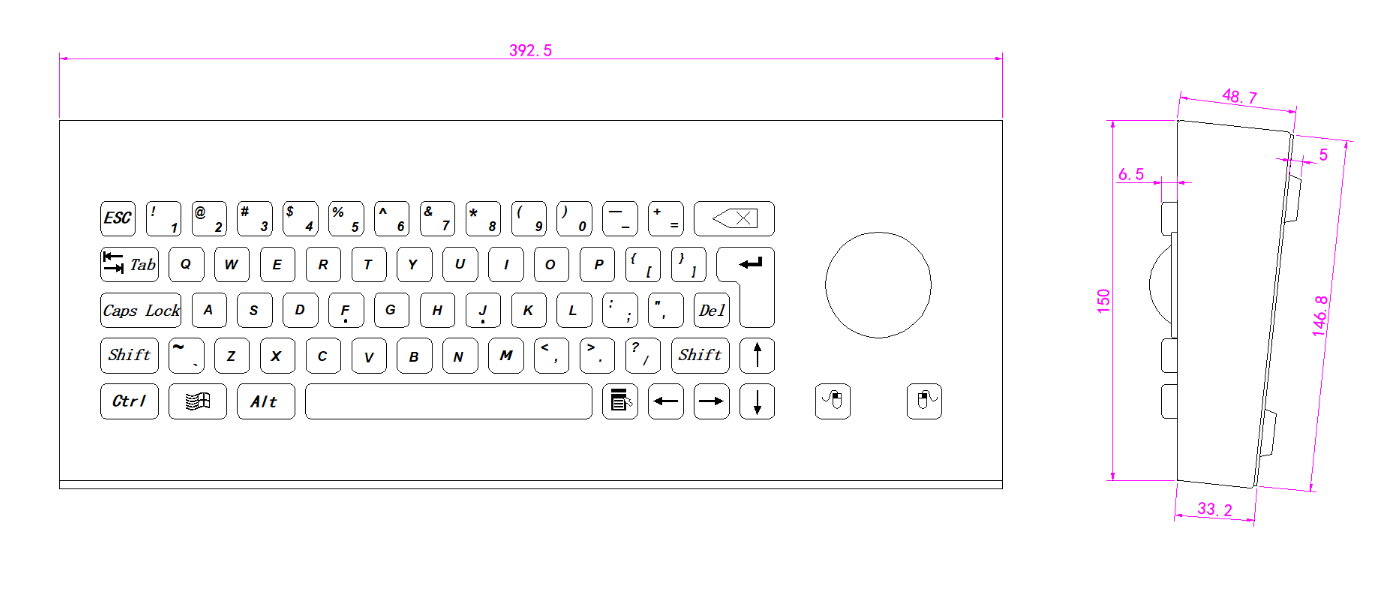

Black best custom mechanical keyboard dimension:
