Model No: KY-PC-D-DESK
66 key desktop stainless steel metal keyboard with trackball

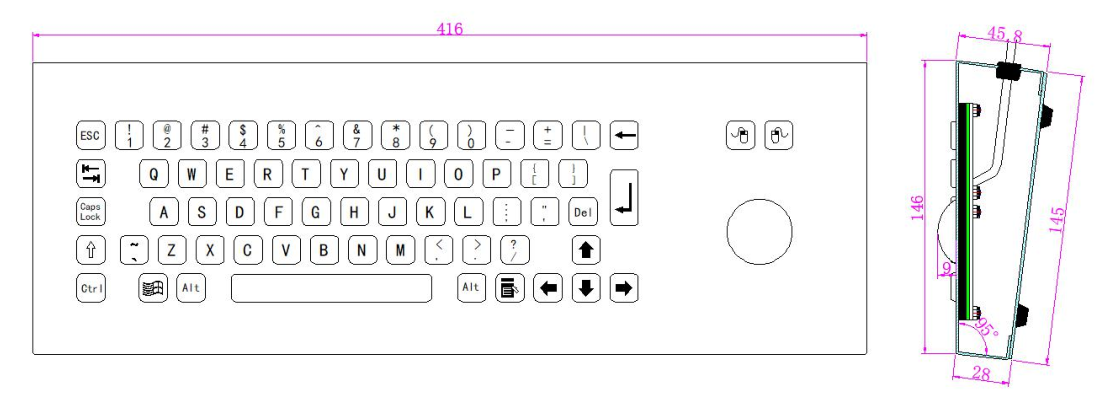

Dimension:
Front Panel:416*145mm
Overall:416*146 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Stainless steel keyboard
Mounting Solution: Flat desktop solution
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：66
Mouse：machinery trackball
Mouse with left, right, and middle buttons
Front Panel:416*145mm
Overall:416*146 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Stainless steel keyboard
Mounting Solution: Flat desktop solution
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：66
Mouse：machinery trackball
Mouse with left, right, and middle buttons
Quantity :
Subscribe to our Newsletter
KY-PC-D-DESK is rugged desktop stainless steel metal keyboard with trackball.
Stainless steel metal keyboard with 38mm metal trackball,the sphere rotates flexibly and accurately, allowing for quick positioning.This stainless steel metal keyboard has a sturdy casing that is riot proof, and the key switches are made of silicone carbon dots for sensitive contact.
66 key desktop stainless steel metal keyboard with trackball.
Mechanical / Electrical Data：
Power supply | 5V±5% |
Working curren | <100mA |
Durability | >2 millions |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14*14*4.5/14*28*4.5/100*14*4.5mm |
Key trip | 1.5mm |
Operation force | 1.5N ± 10% |
Mounting way | Desktop |
Net weight | 2.45Kg |
Gross weight | 2.6Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Application:
Desktop rugged stainless steel metal keyboard Widely used in special fields such as finance, industry, communication, military industry, oil field.(desktop stainless steel metal keyboard with trackball application)
Customized Function Description of Keyboard Layout
1、Support different national languages: English, French, German, Spanish, Portuguese, Russian, etc
2、Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3、Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4、Special industry customization (blocking function): finance/healthcare (disable Win key or lock CapsLock)
Industrial scenario (Fn+Esc triggers emergency stop command).
5、FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
6、Support single key language switch: ctrl+shift
2、Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3、Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4、Special industry customization (blocking function): finance/healthcare (disable Win key or lock CapsLock)
Industrial scenario (Fn+Esc triggers emergency stop command).
5、FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
6、Support single key language switch: ctrl+shift
The keyboard can choose different interfaces:
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
Dimension:
