Model No: KY-PC-F2G
89 keys stainless steel metal keyboard with trackball

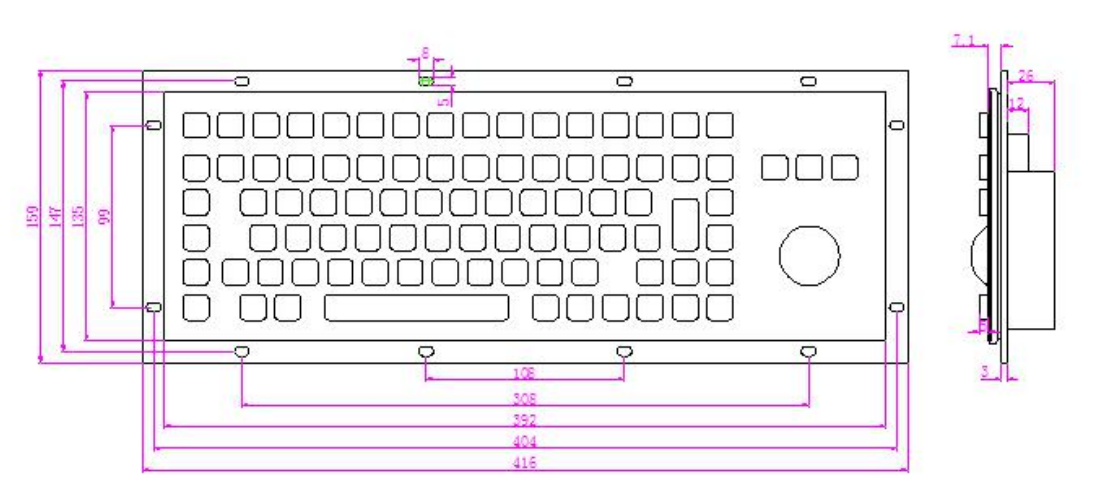

Dimension:
Front Panel:392*110 mm
Overall:416*134 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Stainless steel keyboard
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：89
Mouse：Mechanical trackball
Comes with left and right mouse button function
Front Panel:392*110 mm
Overall:416*134 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Stainless steel keyboard
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：89
Mouse：Mechanical trackball
Comes with left and right mouse button function
Quantity :
Subscribe to our Newsletter
The KY-PC-F2G is a stainless steel metal keyboard with trackball, also commonly referred to as a stainless keyboard.
stainless steel metal keyboard with trackball stands out for its robust construction, made entirely from high-quality stainless steel, which guarantees exceptional durability and resilience.
stainless steel metal keyboard with trackball
Mechanical / Electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 millions |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14mm*14mm*4.5/14*28*4.5/100*14*4.5mm |
Key trip | 1.5mm |
Operation force | 1.5N ± 10% |
Mounting way | From bottom to top, back panel fixing |
Net weight | 1.55Kg |
Gross weight | 1.75Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Application:
The KEYU stainless steel metal keyboard with trackball, also recognized as the stainless keyboard IP65, represents the pinnacle of durability, functionality, and style. Crafted entirely from high-quality stainless steel, stainless steel metal keyboard with trackball is designed to be incredibly robust and resilient, withstanding the harshest conditions and extensive use. The IP65 rating signifies its exceptional resistance to dust and water ingress, making it ideal for use in industrial, medical, or any other demanding environments.
Stainless steel metal keyboard with trackball(stainless keyboard) widely used in petrochemical industry, machinery manufacturing, transportation, electric power, national defense, military, aerospace, Internet, agriculture, voice numerical control, automatic control, medical, communications, measuring instruments, ATM machines, query terminals and other fields.(stainless steel metal keyboard with trackball application).
Customized Function Description of Keyboard Layout

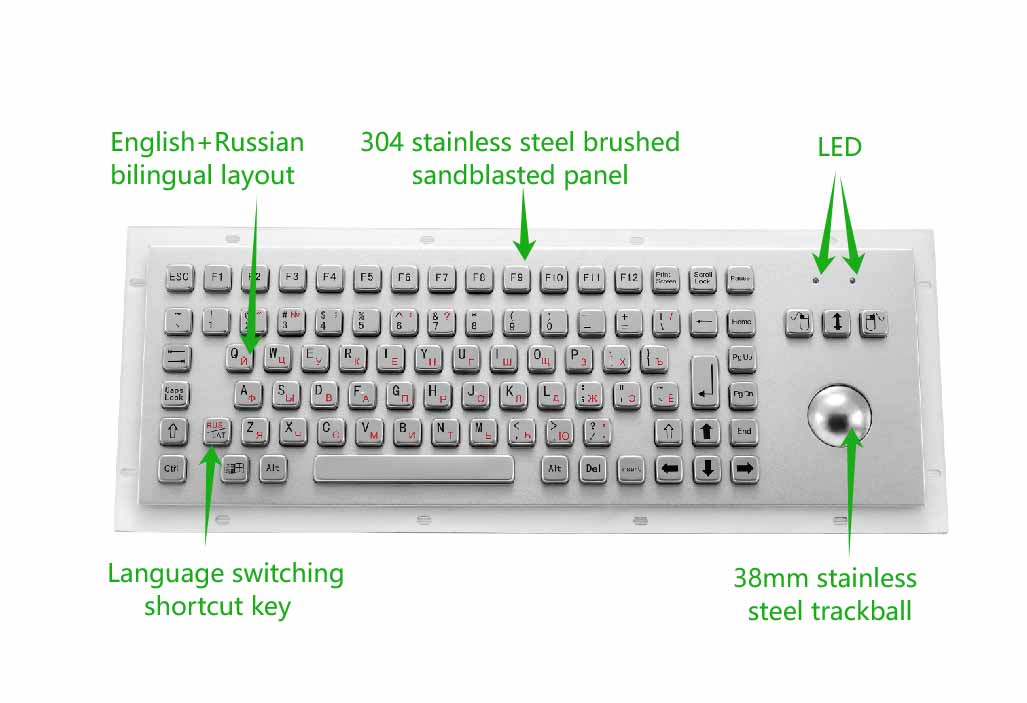

1. Support different national languages: English, French, German, Spanish, Portuguese, Russian, etc
2. Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3. Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4. FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
2. Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3. Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4. FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
5. Special industry customization (blocking function): finance/healthcare (disable Win key or lock CapsLock)
Industrial scenario (Fn+Esc triggers emergency stop command).
6. Support single key language switch: ctrl+shift.
Industrial scenario (Fn+Esc triggers emergency stop command).
6. Support single key language switch: ctrl+shift.

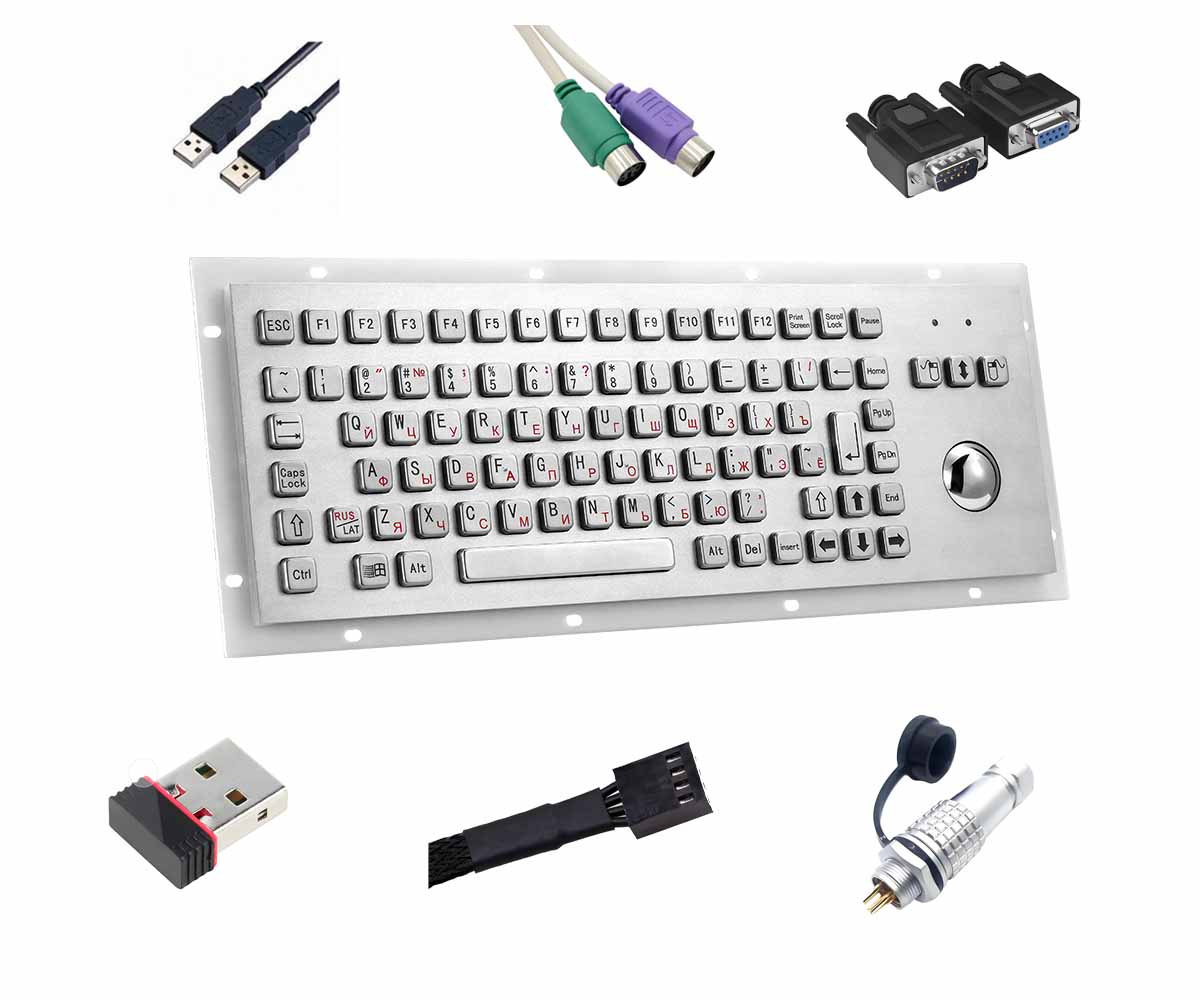

The keyboard can choose different interfaces:
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
There are universal USB cable lengths of 2.5 meters, 4 meters, and 0.6 meters (other lengths can be customized).
Dimension:
