Model No: KY-PC-VC
Front panel computer keyboard with trackball mouse
Size:
Front panel: 160 * 125 millimeters
Total size: 160* 125 * 47.5 millimeters
Features:
Installation solution: Front panel installation
High quality silicone button technology
Durable carbon dot technology
PCB adopts industrial immersion gold process
Waterproof and dustproof design, suitable for harsh environments
The panel is made of 304 stainless steel and has a wire drawing process
The keyboard layout can be customized and supports languages from different countries
Key: 17
Front panel: 160 * 125 millimeters
Total size: 160* 125 * 47.5 millimeters
Features:
Installation solution: Front panel installation
High quality silicone button technology
Durable carbon dot technology
PCB adopts industrial immersion gold process
Waterproof and dustproof design, suitable for harsh environments
The panel is made of 304 stainless steel and has a wire drawing process
The keyboard layout can be customized and supports languages from different countries
Key: 17
Quantity :
Subscribe to our Newsletter
The KY-PC-VC is a industrial computer keyboard with trackball mouse.
This pc keyboard with trackball product has 17 stainless steel keys and a resin trackball mouse,the panel is made of brushed stainless steel.
This computer keyboard has 10 numeric keys from 0 to 9, which can be used for inputting numbers. They can be reused as Home, Page Up, Page Down and other function keys, and can be switched by the"Num Lock"key.Trackball with 2 buttons for left and right mouse button input.
The trackball is made of resin material and sprayed with silver powder, giving it a beautiful appearance and a hard characteristic.The sphere rotates flexibly and can be quickly and accurately positioned through sensors.
Industrial computer keyboard with trackball mouse main features：
- 38mm Resin ball
- Stainless steel brushed panel
- Integrated keyboard and mouse design, saving space
- Durable and sturdy, waterproof and waterproof
- 3mm aluminum alloy base plate
- Support keyboard layouts in various countries (customized according to customer needs)
Industrial PC keyboard with trackball mouse mechanical / Electrical Data：(industrial silicone keyboard)
Power supply | 5V±10% |
Working current | +5V DC @3 0mA |
Durability | >2 millions |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14*14mm |
Key trip | 1.5mm |
Operation force | 100+/-10 g |
Mounting way | Front panel |
Net weight | 0.53Kg |
Gross weight | 0.58Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Industrial PC keyboard with trackball mouse application:
This PC computer metal industrial keyboard is a great product choice for designs with limited space due to its trackball mouse. It is used in payment machines, industrial control platforms, CNC lathes, and other fields
This PC computer metal industrial keyboard is a great product choice for designs with limited space due to its trackball mouse. It is used in payment machines, industrial control platforms, CNC lathes, and other fields
The computer keyboard with trackball mouse can choose different interfaces:
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) RS232
(4) RS485
(5) Customize other interfaces according to requirements
(5) Customize other interfaces according to requirements

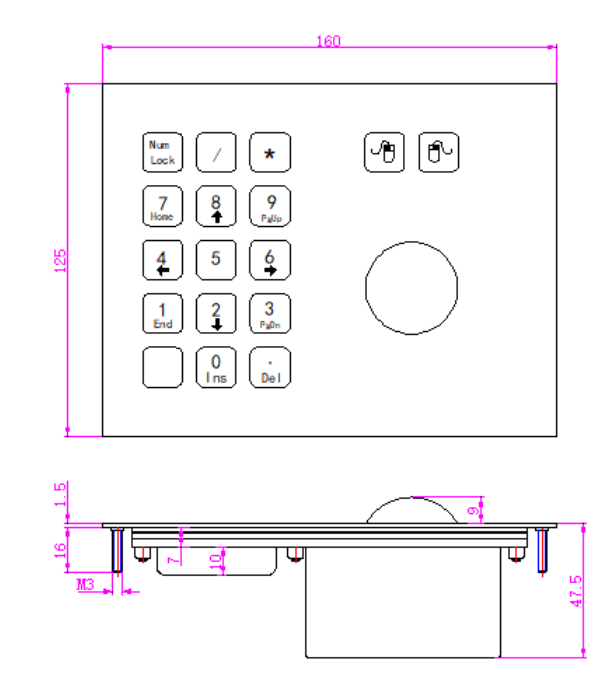

Indsutrial computer keyboard with trackball mouse dimension:
