Model No: KY-GJ405C
IP65 front panel installation silicone keyboard
Size:
Front panel: 405 * 135 millimeters
Total size: 405 * 135 * 14 millimeters
Features:
Installation solution: Front panel installation
High quality silicone button technology
Durable carbon dot technology
PCB adopts industrial immersion gold process
Waterproof and dustproof design, suitable for harsh environments
The panel is made of 304 stainless steel and has a wire drawing process
The keyboard layout can be customized and supports languages from different countries
Key: 86
Front panel: 405 * 135 millimeters
Total size: 405 * 135 * 14 millimeters
Features:
Installation solution: Front panel installation
High quality silicone button technology
Durable carbon dot technology
PCB adopts industrial immersion gold process
Waterproof and dustproof design, suitable for harsh environments
The panel is made of 304 stainless steel and has a wire drawing process
The keyboard layout can be customized and supports languages from different countries
Key: 86
Quantity :
Subscribe to our Newsletter
The KY-GJ405C is a industrial backlit silicone keyboard.
It has 86 keys and is an industrial backlit silicone keyboard with a touchpad mouse.The integrated design of keyboard and mouse can save space and is the best choice for mini devices.
The backlit silicone keyboard durable, waterproof and washable, silicone material, silicone surface provides comfortable typing experience.
The backlit silicone keyboard is made of 304 stainless steel as the panel and has undergone wire drawing treatment, giving it a sturdy appearance. The keys are made of silicone, providing a comfortable press feel. This backlit silicone keyboard, which combines these two materials, has a metallic texture and is of moderate weight,, making it the best silicone keyboard.
Industrial backlit silicone keyboard main features：
- 304 stainless steel panel
- Small, unique, easy to wipe keys
- Optional backlight function, adjustable backlight brightness
- Backlight color options available
- Different languages and colors are supported
- Not easy to harbor dirt
- Easy to clean surface
- Integrated pointing device
- Dust proof and waterproof grade:IP65
- Suitable for rinsing with cleaning and disinfectant. Unaffected by medical cleaning fluids
- Material :100% silicone rubber
Industrial backlit silicone keyboard mechanical / Electrical Data：(industrial silicone keyboard)
Power supply | 5V±10% |
Working current | +5V DC @3 0mA |
Durability | >2 millions |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | |
Key trip | 1.5mm |
Operation force | 100+/-10 g |
Mounting way | Front panel |
Net weight | 0.53Kg |
Gross weight | 0.58Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Application:
KEYU is silicone keyboard manufacturers, the products developed and produced have high reliability, making them the best choice for input devices. Widely used in the field of financial equipment, communication equipment,Military equipment field and a series of self-service terminal equipment field.
KEYU is silicone keyboard manufacturers, the products developed and produced have high reliability, making them the best choice for input devices. Widely used in the field of financial equipment, communication equipment,Military equipment field and a series of self-service terminal equipment field.
The backlit silicone keyboard can choose different interfaces:
PC keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Customize other interfaces according to requirements

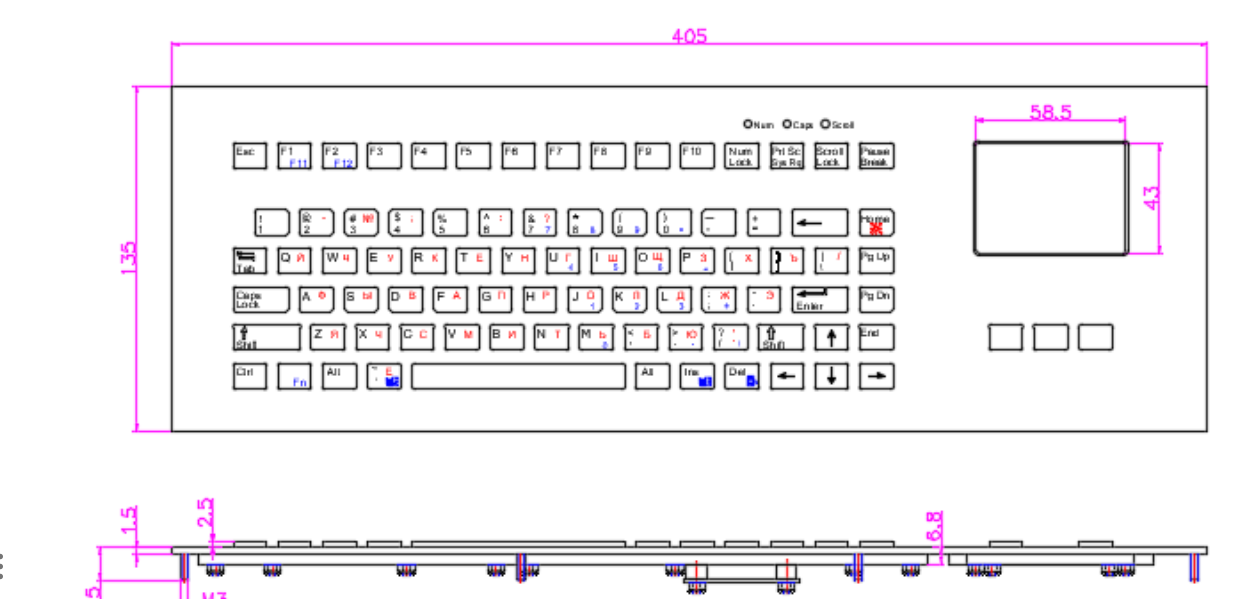

Backlit silicone keyboard dimension:
