Model No: KY-2117
Keyu 20 keys steelseries keypad
Dimension:
Front Panel:82.6*82.6mm
Overall:114.5*114.5 mm
Features:
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：20
Front Panel:82.6*82.6mm
Overall:114.5*114.5 mm
Features:
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：20
Quantity :
Subscribe to our Newsletter
The KY-2117 is steelseries keypad with 20 keys.
This rugged steelseries keypad has 20 keys, with encryption function, can be used for human-machine interface to enter numbers or codes.
Mechanical / Electrical Data：encrypted digital keypad
Power supply | 5V±5% |
Working current | <150mA |
Durability | >1 million |
Interface | 9Pin Scanning port |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 20*12.5*2.0mm / 14*14*2.0mm / 28*14*2.0mm |
Key trip | 0.45mm |
Operation force | 2N+/-0.1N（Contact force） |
Mounting way | Assemble from bottom to top |
Net weight | 0.45Kg |
Gross weight | 0.65Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Application:
widely used in the field of financial equipment, communication equipment, military equipment and a series of self-service terminal equipment fields.(Encrypted digital keypad)
Application:
Industrial automation and HMI (Human-Machine Interface) systems
Material handling and logistics terminals
Communication equipment
Financial equipment
Medical equipment and cleanroom environments
Outdoor kiosks and self-service stations Military and defense equipmen
Dimension:

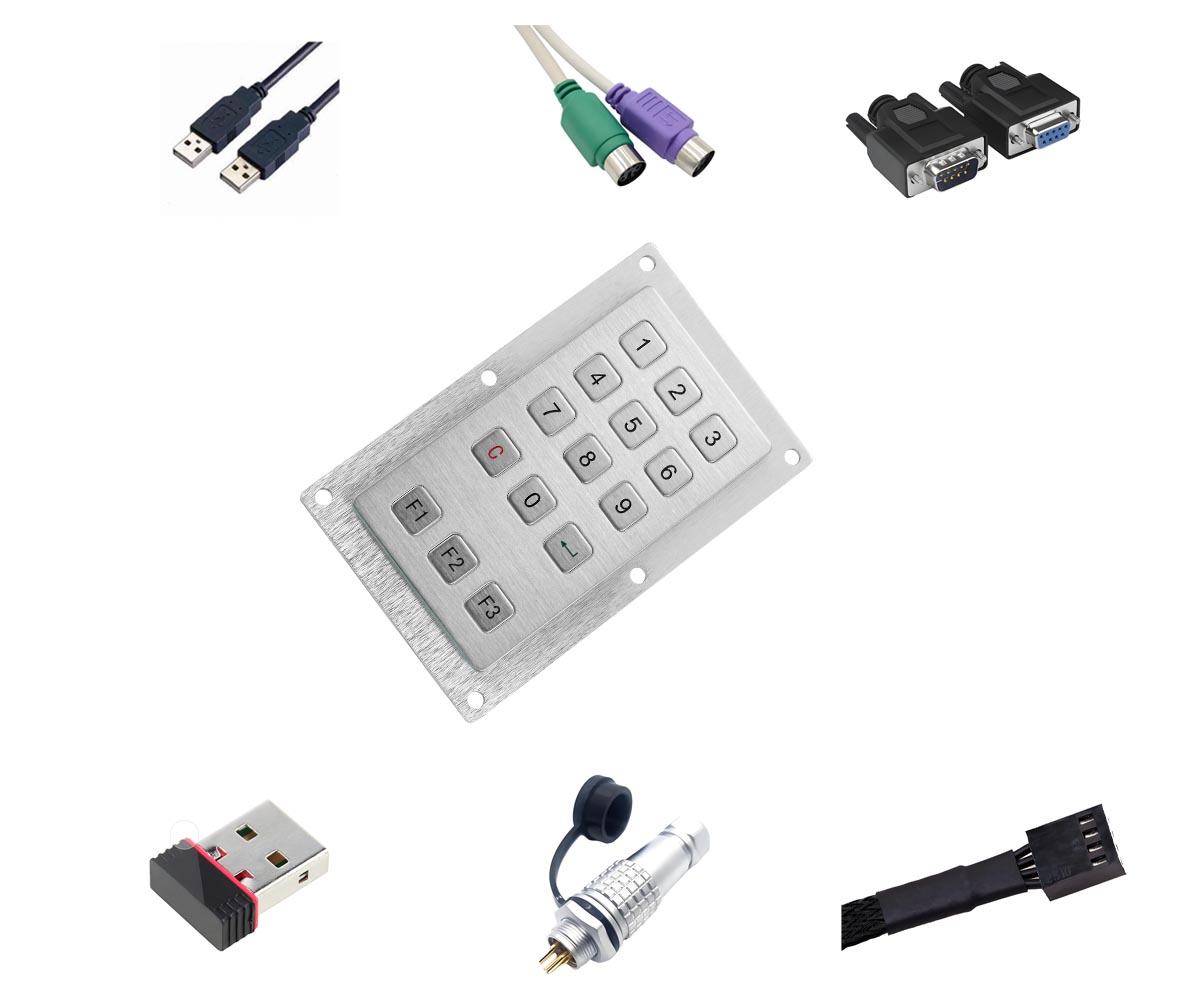

The keyboard can choose different interfaces:
66 keys metal keyboard backlight's metal keyboard generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) I²C (Inter-Integrated Circuit) interface for seamless digital integration
(7) Customize other interfaces according to requirements
(7) Customize other interfaces according to requirements
