Model No: KY3088LP-12864E
Metal keyboard with lcd display KY3088LP-12864E
Size:
Front panel: 124 * 152.2 millimeters
Dimensions: 165 * 124.2 * 9.5 millimeters
features:
Installation method: Post installation method
PCB adopts industrial immersion gold process
The control motherboard adopts a low-power design
Waterproof, non-destructive, suitable for various harsh environments, can be used indoors and outdoors
A metal keyboard made of SUS304 stainless steel, sturdy and durable, with anti damage and anti-corrosion design
The layout can be customized and supports languages from different countries
Switch: Metal dome switch technology
Button with LED light transmission function, adjustable brightness
Number of buttons: 16
RS232 serial communication
12864 dot matrix LCD display screen
Display screen with backlight function
Front panel: 124 * 152.2 millimeters
Dimensions: 165 * 124.2 * 9.5 millimeters
features:
Installation method: Post installation method
PCB adopts industrial immersion gold process
The control motherboard adopts a low-power design
Waterproof, non-destructive, suitable for various harsh environments, can be used indoors and outdoors
A metal keyboard made of SUS304 stainless steel, sturdy and durable, with anti damage and anti-corrosion design
The layout can be customized and supports languages from different countries
Switch: Metal dome switch technology
Button with LED light transmission function, adjustable brightness
Number of buttons: 16
RS232 serial communication
12864 dot matrix LCD display screen
Display screen with backlight function
Quantity :
Subscribe to our Newsletter
KY3088LP-12864E is a metal keyboard with lcd display for Low functionality applications.
This stainless steel metal keyboard with a 12864 dot LCD screen can display 4 lines of content, a total of 16*4 characters, and can adapt to the lowest temperature of -20 degrees, suitable for outdoor or low temperature environments. The keyboard lcd display uses white backlight and black characters.
The backlight color of the metal keyboard with lcd display can also be customized according to needs, such as yellow-green backlight. The brightness of the backlight can be controlled by software, such as 25%, 50%, 75%, 100%, or off. This function is designed to meet low power consumption design.
This custom keyboard with LCD display uses RS232 serial communication and uses a baud rate of 115200bps. Other baud rates can also be customized.
The communication commands of the metal keyboard can be customized according to application requirements, and the display content of the keyboard LCD screen can be controlled. The display time and format can be modified according to application requirements to meet the actual function design to the greatest extent.
This customized LCD metal keyboard is made of 304 stainless steel, and the panel is stainless steel with brushed treatment. The display area opening of the keyboard LCD screen is covered with glass lenses, which are hard and protect the LCD screen.
The 16-key keyboard lcd display screen adopts low-power design. The LCD display screen can be turned off by software, and the backlight intensity can also be controlled by software.
The motherboard of the metal keyboard uses a low-power chip. It can enter the blinking mode after a long period of inactivity to minimize power consumption. In sleep mode, pressing any key can wake up the keyboard and enter working mode. It can also be woken up by a serial port command.
Metal keyboard with lcd display 's layout can be customized for free.

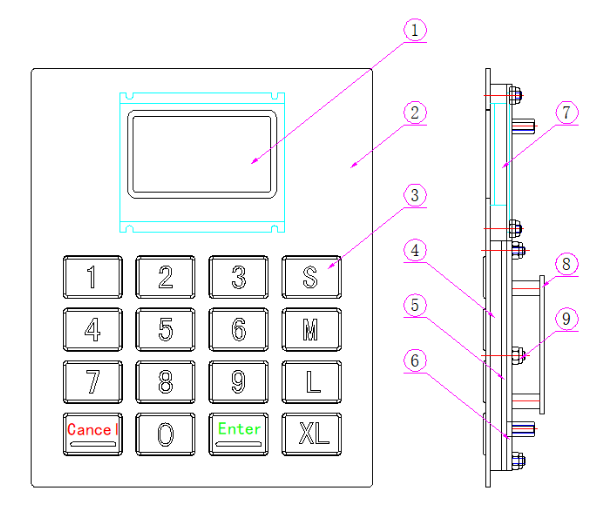

Metal keyboard with lcd display mechanical / electrical Data：
Power supply | 5V±5% |
Working current | <150mA |
Durability | >2 millions |
Interface | Support RS232，Other interfaces can be customized |
Operating system | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 21.5*15.5*3.0mm |
Key trip | 0.45mm |
Operation force | 2N+/-0.1N（contact force） |
Mounting way | From bottom to top, back panel fixing |
Net product weight | 0.53Kg |
Gross product weight | 0.65Kg |
Operating temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage temperature | -30℃~80℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
Metal keyboard with lcd display application:
Keyboard oled display are widely used in ticket vending machines, logistics and express delivery cabinets, self-service payment machines, vending machine terminals, gas dispensers, petroleum, coal mines and other fields.
Metal keyboard with lcd display can support languages from different countries
- English,
- German,
- Spanish,
- Chinese
- Portuguese
- Other languages can also be customized

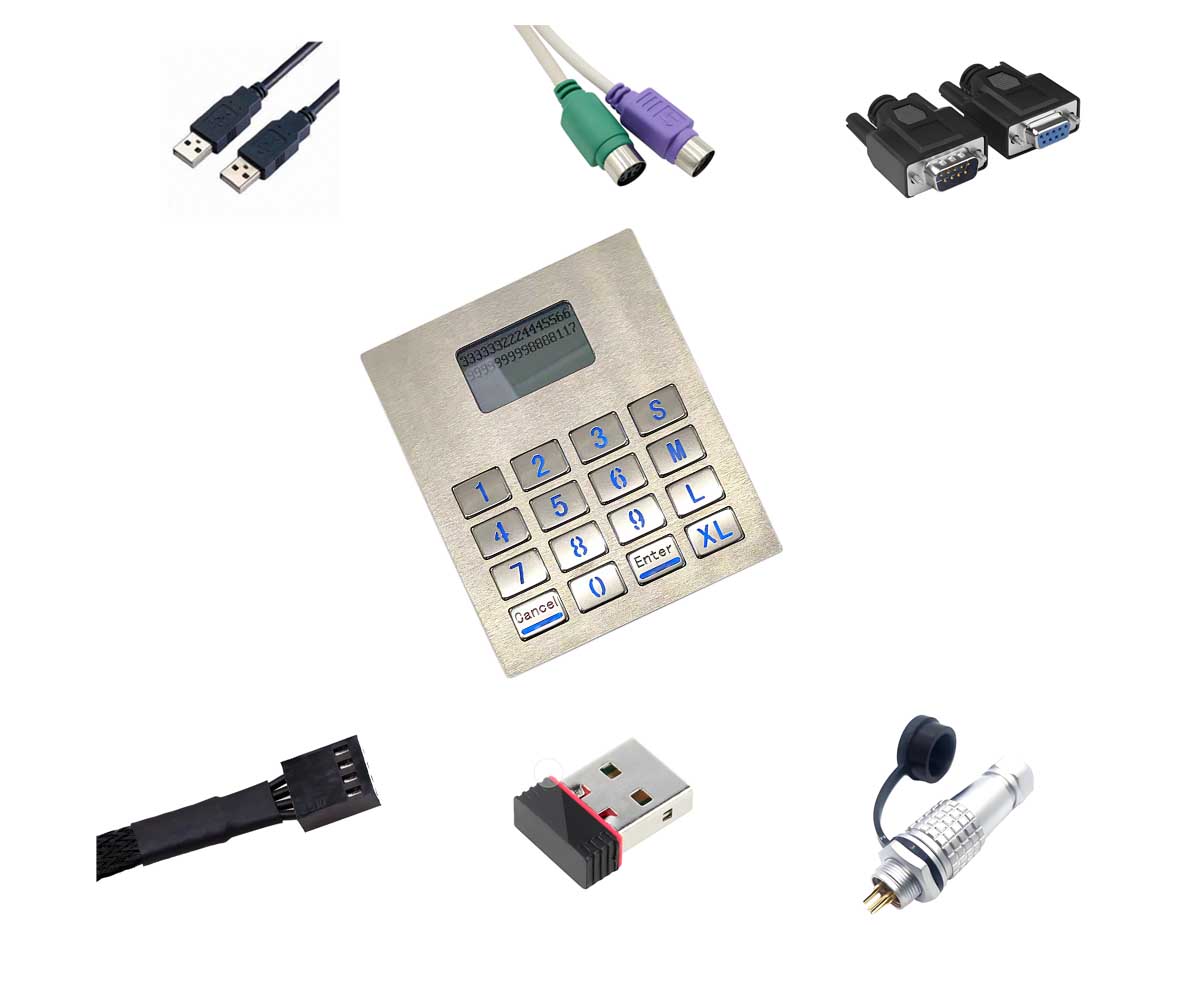

Industrial metal keyboard with lcd display can support different interface types
- RS485
- RS232
- Other interfaces custom
