Model No: KY-PC-VE
Metal numeric keypad with trackball mouse function
Dimension:
Front Panel:196*100 mm
Overall:196*120 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：18
Front Panel:196*100 mm
Overall:196*120 mm
Stainless Steel Trackball Size: Φ38mm
Features:
Mounting Solution: Rear panel mount
PCB adopts industrial immersion gold process
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：18
Quantity :
Subscribe to our Newsletter
The KY-PC-VE is metal numeric keypad with trackball mouse function, has a total of 16 buttons, is an ultra-thin metal numeric keyboard with trackball mouse function. Is an embedded device, widely used in gold financial equipment field, communication equipment field, military equipment field, library, medical industry and other self-service terminal equipment field.
Mechanical / Electrical Data：metal numeric keypad with trackball mouse function
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 million |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14*14*2.0/14*28*2.0mm |
Key trip | 0.45mm |
Operation force | 1.2N+/-0.1N（Contact force） |
Mounting way | Rear mounting or Front mounting |
Net weight | 0.8Kg |
Gross weight | 0.9Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
metal numeric keypad with trackball mouse
Application:
This metal numeric keypad with trackball mouse functiont has a total of 16 buttons, is an ultra-thin numeric keypad with trackball mouse function. Is an embedded device,
- Industrial automation and HMI (Human-Machine Interface) systems
- Material handling and logistics terminals
- Communication equipment
- Financial equipment
- Medical equipment and cleanroom environments
- Outdoor kiosks and self-service stations Military and defense equipmen

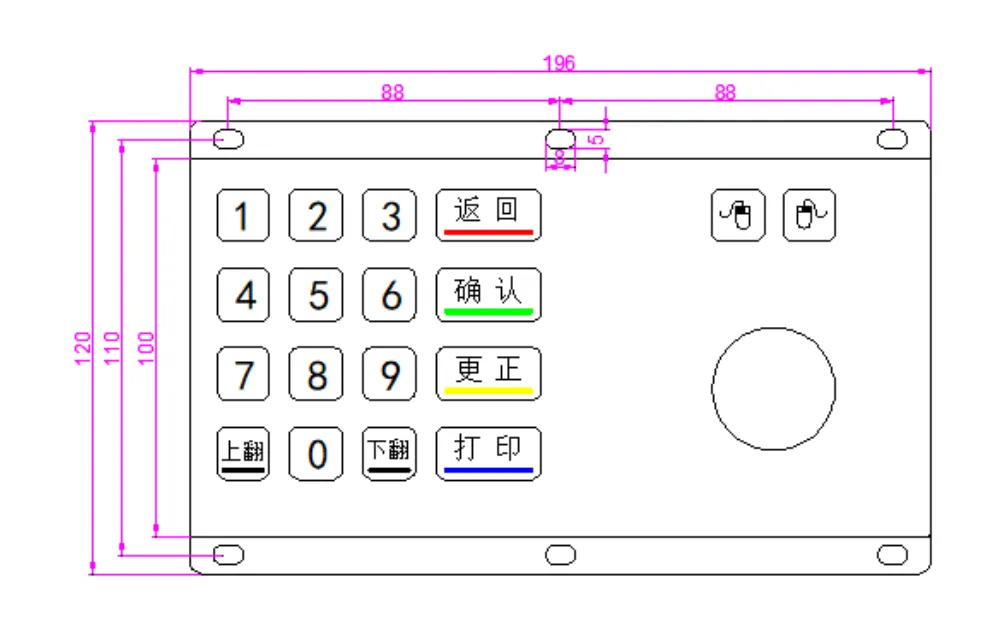

Dimension:

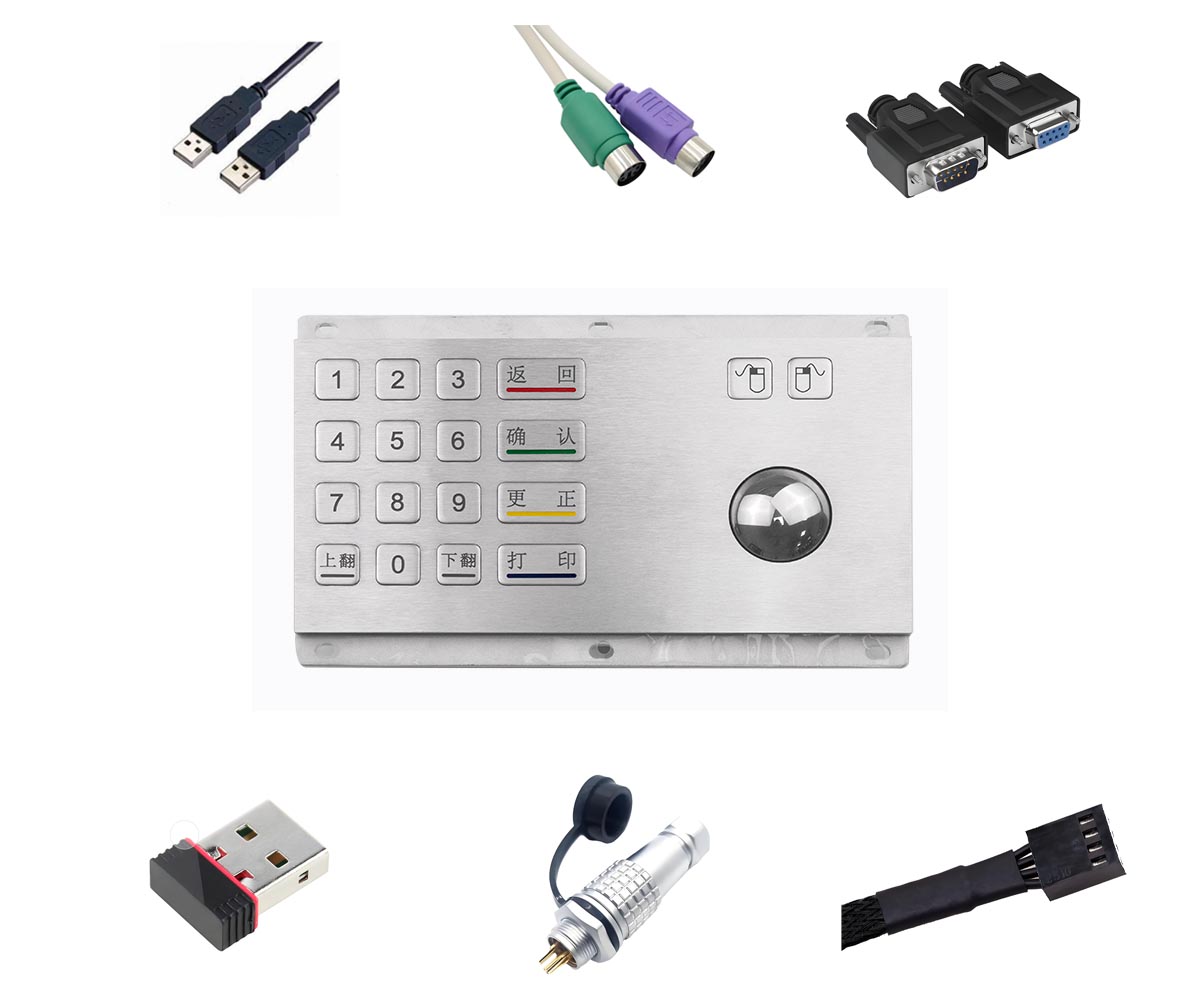

The keyboard can choose different interfaces:
66 keys metal keyboard backlight's metal keyboard generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
The interface shown in the above picture is an English+Arabic interface. According to customer requirements, some buttons may be blocked (we do not need to customize for special needs).
There are universal USB cable lengths of 2.5 meters, 4 meters, and 0.6 meters (other lengths can be customized).
