Outdoor parcel lockers lcd display keypad KY3688LP-H
Front Panel:165*150 mm
Overall:165*150*65 mm
Features:
Mounting Solution: Front panel installation
PCB adopts industrial immersion gold process
IP65 Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
High-quality SUS304 stainless steel keypad, rugged vandal proof, Anti-corrosion design.
The layout can be customized and supports languages of various countries
Support for Braille or graphic key caps ( optional)
Button switch: Metal dome switch technology
Keys：16
KY3688LP-H is a metal lcd display keypad.
The LCD displays prompts, allowing users to clearly understand the operation stage, and also displays the entered key input, providing an excellent human-machine interface.
The lcd display keypad‘s screen is a yellow-green backlit LCD (backlight color is customizable). A sleep timer can be set, for example, after 15 or 30 seconds of inactivity, the keyboard enters sleep mode to save power, especially suitable for outdoor battery-powered applications. It can also be set to remain continuously active.
This custom lcd display keypad uses RS485 communication with a baud rate of 115200bps; other baud rates are also customizable.
The serial communication commands for the metal keyboard can be customized according to application requirements. It can control the content displayed on the keyboard's LCD screen.
Metal lcd display keypad main features:
- The panel is made of high-quality SUS304 brushed stainless steel, which is explosion-proof and corrosion-resistant.
- US304 brushed stainless steel buttons（The characters are padded with preservatives）
- Customizable Braille layout
- The silkscreen (etched) content on the buttons can be customized according to customer requirements, supports different languages, and uses an etching and filling process, making it resistant to wear and peeling.
- With a 128*32 dot matrix LCD screen (Yellow-green backlight)
- he LCD display can show English,German,Romanian,Czech,or other languages. Please confirm before placing order.
- Interface:RS485, other interfaces (TTL, RS485, etc.) can be customized.
- Low-power design:
① Operating current <60 mA ,Keyboard power consumption can be reduced by adjusting the LCD backlight brightness.
② Sleep Mode current < 210μA (The keyboard can be woken up by pressing a key).
- Customizable communication protocol
- IP65 (surface protection)
Metal LCD key pad mechanical / electrical Data：
OperatingVoltage | DC 5~12V |
OperatingCurrent | <60mA |
Button Lifespan | >2000000 |
Product Interface | RS485，Other interfaces can be customized. |
SupportedOperating systems | Window XP、Window 7、Window 8、Window 10 |
ButtonSize | 23*18*5.1mm / 39*18*5.1 |
Button travel | 0.45mm |
ButtonPressure | 3N+/-0.1N（Contact force） |
Installation method | From top to bottom, panel fixed assembly |
NetWeight | 0.9KG |
Gross Weight | 1.05KG |
OperatingTemperature | -20℃~60℃ |
StorageTemperature | -40℃~85℃ |
WaterproofAndDustproofRating | IP65（Surface） |
Mean Time Between Failures | 20,000 hours |
Mean Repair Time | 30 minutes |
Electromagnetic Compatibility | Compliant with CE standards |
Connecting Cable | PH2.0mm 4PIN (Other connecting cables can be customized) |
Metal keyboard with lcd display application:
Keyboard oled display are widely used in ticket vending machines, logistics and express delivery cabinets, self-service payment machines, vending machine terminals, gas dispensers, petroleum, coal mines and other fields.
Metal lcd keypad can support languages from different countries
- English,
- Croatia
- Czech Republic
- Sweden
- Romania
- German,
- Spanish,
- Chinese
- Portuguese
- Other languages can also be customized
Industrial metal lcd keypad display can support different interface types
- RS485
- RS232
- IIC
- Other interfaces custom

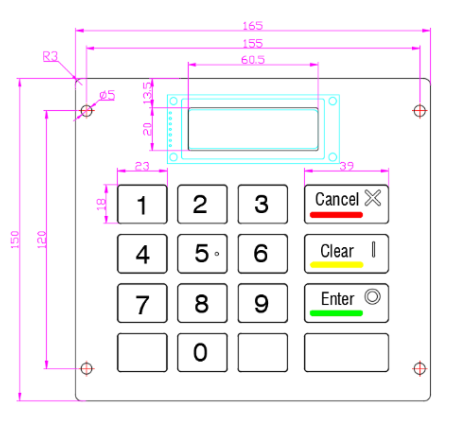

Lcd display keypad dimension diagram
