Model No: KY-PC-HHCT
46 keys industrial panel mount keypad
Dimension:
Front Panel:189.8*97.8 mm
Overall:189.8*97.8 mm*22mm
Features:
Stainless steel keyboard
Mounting Solution: Front panel installation
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：47
Key switch: Metal dome
Front Panel:189.8*97.8 mm
Overall:189.8*97.8 mm*22mm
Features:
Stainless steel keyboard
Mounting Solution: Front panel installation
PCB adopts industrial immersion gold process
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：47
Key switch: Metal dome
Quantity :
Subscribe to our Newsletter
The KY-PC-HHCT is the 46 keys industrial panel mount keypad.
The keys of industrial panel mount keypad are made of 304 stainless steel through stamping and drawing, and the panel mount keyboard‘s characters are etched filling oil with strong adhesion and durable wear resistance.
The stainless steel panel of this industrial panel mount keyboard is brushed,beautiful appearance.
This keyboard adopting panel installation method,there are 6 M3 screws on the back of the panel, which is easy to install in industrial applications.
46 keys industrial panel mount keyboard Key Features:
✔ 304 stainless steel housing, durable and corrosion-resistant
✔ The key switch uses gold-plated shrapnel for long life
✔ Waterproof and dustproof - suitable for harsh environments
✔ The interface text can be customized and supports various languages
✔ Ergonomic design - suitable for long-term work
✔ The key switch uses gold-plated shrapnel for long life
✔ Waterproof and dustproof - suitable for harsh environments
✔ The interface text can be customized and supports various languages
✔ Ergonomic design - suitable for long-term work
62 keys desktop metal keyboard with mouse Mechanical / Electrical Data：
Power supply | 5V±5% |
Working current | <100mA |
Durability | >2 million times |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 12*12*2.0/24*12*2.0mm |
Key trip | 0.45mm |
Operation force | 3N+/-0.1N（Contact force） |
Mounting way | From top to bottom, the panels are fixedly assembled. |
Net weight | |
Gross weight | |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
46 keys industrial panel mount keypad application:
This product is a 46-key desktop metal keyboard with mouse function. It is an embedded device, widely used in medical equipment, financial equipment, aerospace, industrial control and other fields, and is one of the best choices for input devices.

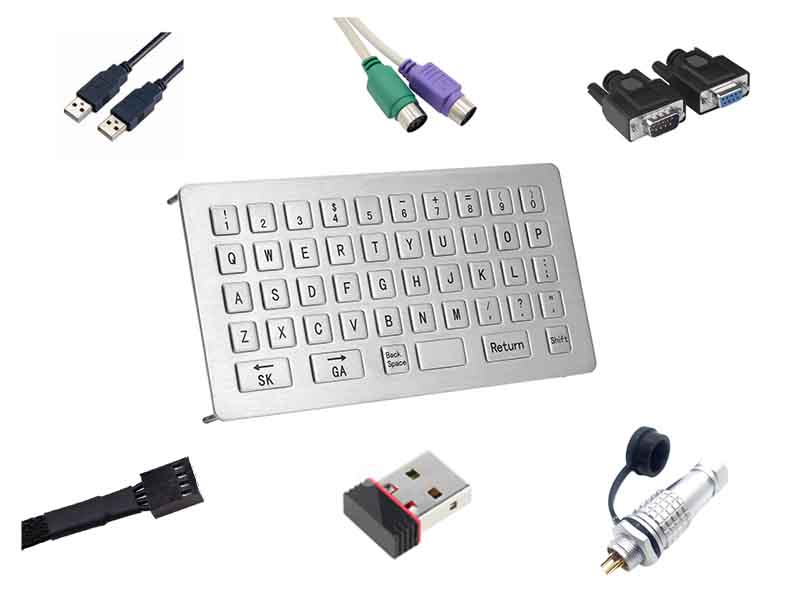

The industrial panel mount keypad can choose different interfaces:
Commonly used PC keyboard interfaces include USB and PS/2 interfaces.
(1) USB: USB Type-A (standard interface), plug and play (hot plug)
(2) PS/2 interface: needs to be connected before powering on (does not support hot plug), no delay in use
(3) RS485 (industrial differential communication) has strong anti-interference ability and long transmission distance
(4) RS232 (DB9 serial port): mainly used for industrial control consoles, with longer transmission distance than USB and PS2 and more stable
(5) Customize other interfaces according to needs

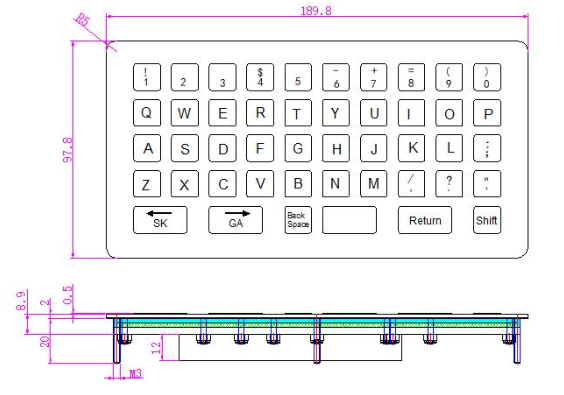

46 keys industrial panel mount keypad structural diagram:
