Model No: KY-PC-U
84 keys embedded stainless steel industrial computer keyboard
Dimension:
Front Panel:320*105 mm
Overall:344*129mm
Features:
Stainless steel keyboard,
PCB adopts industrial immersion gold process
water&vandal proof design
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：84
Front Panel:320*105 mm
Overall:344*129mm
Features:
Stainless steel keyboard,
PCB adopts industrial immersion gold process
water&vandal proof design
Buttons made of stainless steel
Laser or Etching procedure for key labeling optional
Waterproof and Vandalproof，Suitable for various harsh environments and can be used both indoors and outdoors
Can support free customization of language layouts for various countries
Keys：84
Quantity :
Subscribe to our Newsletter
KY-PC-U keyboard is a Industrial stainless steel keyboardwith a U-shaped key design that conforms to ergonomic principles, providing a comfortable
KY-PC-U is a industrial computer keyboard , this 84 keys embedded stainless steel industrial computer keyboard with excellent typing experience
Industrial computer keyboard Mechanical / Electrical Data：
Power supply | DC5V±5% |
Working current | <150mA |
Durability | ≥2 million |
Interface | USB / PS/2 |
Compatible with systems | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | U型∅13高6mm,空格键∅13*31高6mm |
Key trip | 1.5mm |
Operation force | 120g±15g |
Mounting way | From bottom to top, back panel fixing |
Net weight | 1.0Kg |
Gross weight | 1.1Kg |
Operation Temperature | -20℃~60℃（Relative humidity 20%~85% / Atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / Atmospheric pressure 60~106Kpa） |
Approval | RoHS、IP65、FCC、CE |
In the pursuit of efficient and durable industrial environments, industrial computer keyboard stand out with their excellent corrosion resistance and durability,designed for harsh industrial scenarios, not only has IP level protection to effectively resist dust and water splashes. industrial computer keyboard, on the other hand, integrates advanced technology and ergonomics to ensure that operators can still enjoy a smooth and accurate input experience in complex and ever-changing industrial applications, industrial computer keyboard improving overall work efficiency and safety.
Industrial computer keyboard Application:
Industrial computer keyboard produced by Keyu have successfully entered the global market with excellent quality and innovative design.Widely used in Kiosk Solution, Medical Equipment, Industrial Facilities,Prisons, Food Service,Oil Fields Etc.（rugged embedded metal industrial computer keyboard application)
Industrial computer keyboard can customized Function Description of Keyboard Layout
1. Support different national languages: English, French, German, Spanish, Portuguese, Russian, etc
2. Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3. Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4. FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
2. Multi language keycap compatibility: Keycaps physically support bilingual engraving (such as English+Korean, English+Russian, English+Persian); Provide layout options such as European (ISO) and American (ANSI).
3. Support internet/symbol shortcut keys: independent physical keys or combination keys for quick input of www http://、.com、@ Waiting for high-frequency characters.
4. FN Function Layer Extension: Default numeric keypad overlay with F1~F12 functions (F1 needs to be triggered by pressing Fn+1);
FN+letters can be set for media control (volume/brightness), screenshot, program launch, etc.
5. Special industry customization (blocking function): finance/healthcare (disable Win key or lock CapsLock)
Industrial scenario (Fn+Esc triggers emergency stop command).
6. Support single key language switch: ctrl+shift.
Industrial scenario (Fn+Esc triggers emergency stop command).
6. Support single key language switch: ctrl+shift.

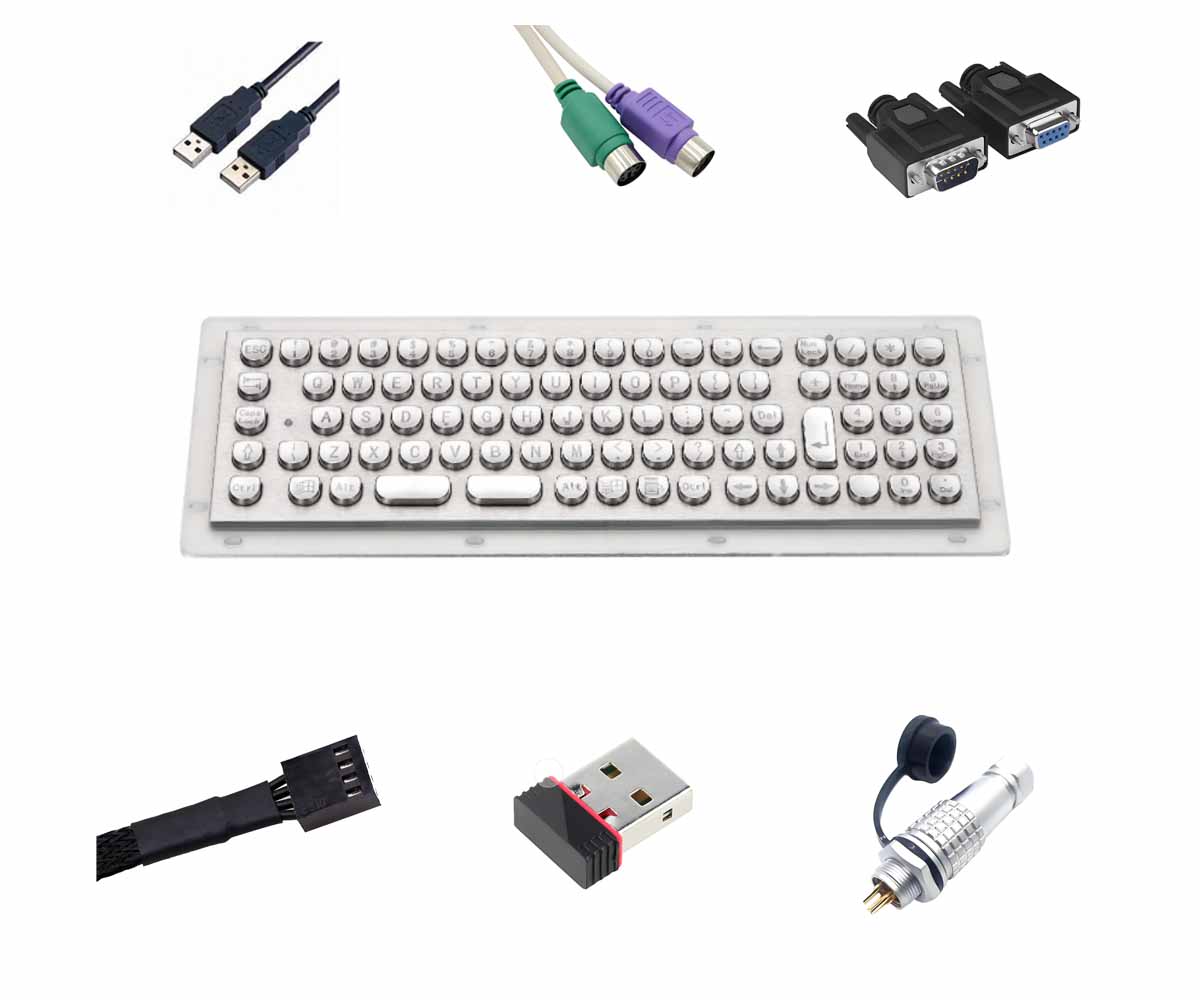

The industrial computer keyboard can choose different interfaces:
industrial computer keyboards generally choose USB or PS/2 interfaces.
(1) USB (Universal Serial Bus): USB Type-A (Standard Interface)
Features: Plug and play (hot swappable), supporting power supply and data transmission
(2) PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
(3) Wireless interface (customizable) low-power design:
Bluetooth (Bluetooth)
2.4GHz wireless (USB receiver)
(4) RS232 (DB9 serial port): mainly used in specialized scenarios such as industrial consoles, medical equipment, bank terminals, etc
(5) RS485 (Industrial Differential Communication) is mainly used in factory automation (PLC), multi device networking (≤ 32 nodes), with strong anti-interference and long transmission distance
(6) Customize other interfaces according to requirements
There are universal USB cable lengths of 2.5 meters, 4 meters, and 0.6 meters (other lengths can be customized).

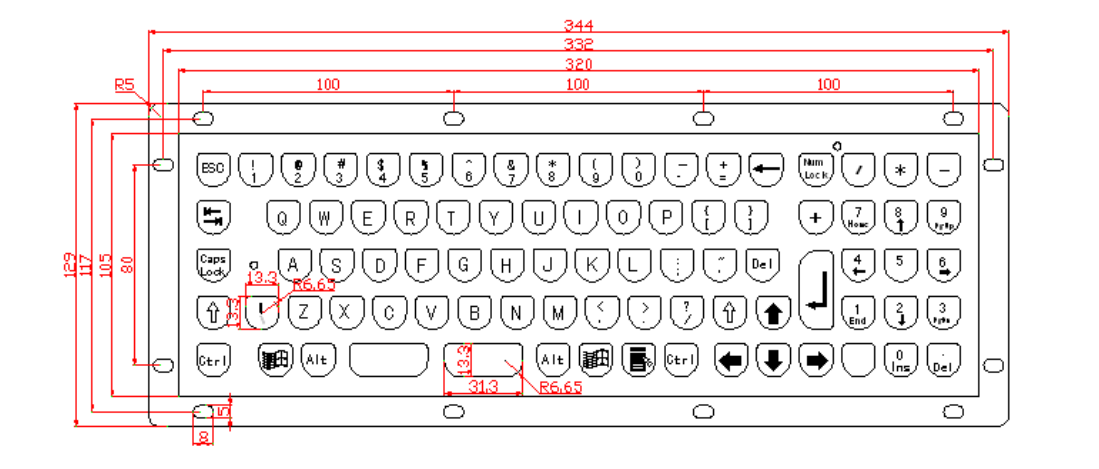

Industrial computer keyboard Dimension:
