Model No: KY-PC-HA
Industrial full metal mechanical keyboard KY-PC-HA
Size:
Front panel: 123.8 * 102mm
Total dimensions: 314.8 * 123.8 * 30mm
features:
Stainless steel keyboard
Installation plan: Rear panel installation
The PCB board adopts industrial immersion gold process, which is durable and long-lasting
Using mechanical switches
Stainless steel keycaps, made of 304 stainless steel
Free customization of languages and scripts for different countries
Number of keys: 63
Front panel: 123.8 * 102mm
Total dimensions: 314.8 * 123.8 * 30mm
features:
Stainless steel keyboard
Installation plan: Rear panel installation
The PCB board adopts industrial immersion gold process, which is durable and long-lasting
Using mechanical switches
Stainless steel keycaps, made of 304 stainless steel
Free customization of languages and scripts for different countries
Number of keys: 63
Quantity :
Subscribe to our Newsletter
KY-PC-H is a industrial best steelseries mechanical keyboard with trackball.
This mechanical steelseries keyboard has a total of 63 buttons, adopting stainless steel metal keycaps.
The keyboard keys can support the FN key and can be used in combination with the 0-9, -, and=keys to achieve the functions of F1~F12. Other combination keys can also be customized.
The layout can support languages from different countries, such as French, Russian, German, English, Spanish, etc.
The keyboard keys can support the FN key and can be used in combination with the 0-9, -, and=keys to achieve the functions of F1~F12. Other combination keys can also be customized.
The layout can support languages from different countries, such as French, Russian, German, English, Spanish, etc.

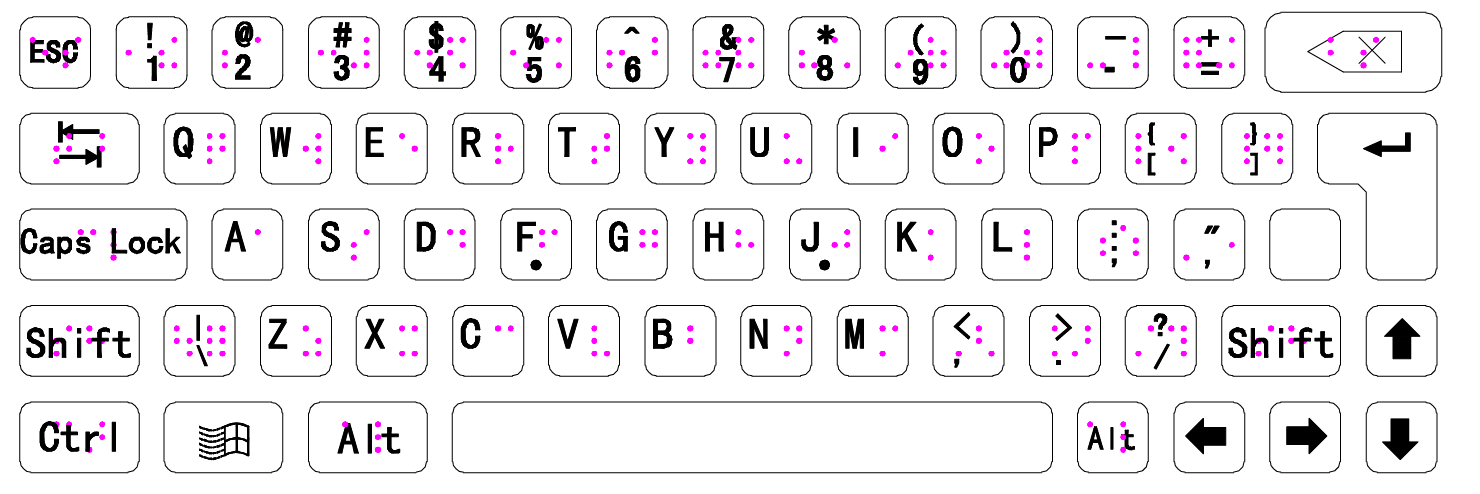

Can support customized braille keyboards, as shown in the figure below, with blind spots on the keycaps for special groups to use.
y met
al indu
al industrial keyboard touch pad
Industrial full metal mechanical keyboard mechanical / electrical Data：
Working power | 5V±5% |
Working current | <100mA |
Durability | >2Million |
Interface | USB / PS/2 |
Compatible system | Window XP、Window 7、Window 8、Window 10、Linux、Ubuntu、Android |
Key size | 14mm*14mm*8.5/23.5*14*8.5/33*14*8.5mm/118.5*14*8.5mm |
Key Trip | 4mm |
Operation force | 2N ± 10% |
Mounting Way | Back mounting |
Wet weight | 1.1Kg |
Gross weight | 1.25Kg |
Working temperature | -20℃~60℃（Relative humidity 20%~85% / atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / atmospheric pressure 60~106Kpa） |
| Approval | RoHS、IP65、FCC、CE |
Industrial full metal mechanical keyboard Application:
- Industrial control
- medical equipment
- laboratory
- Financial and commercial self-service terminals
- pharmaceutical production
- Maritime vessels

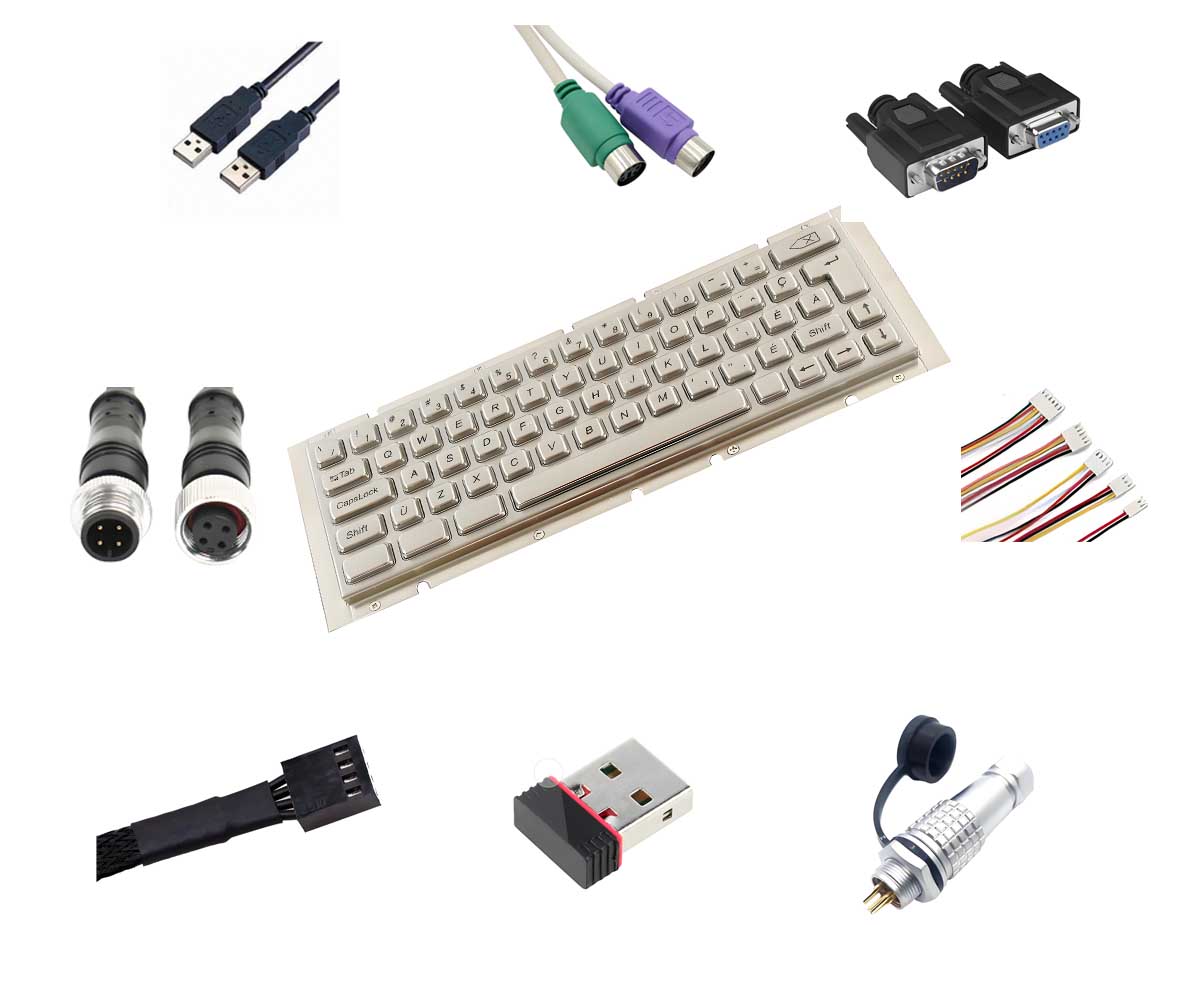

Industrial full metal mechanical keyboard can choose different interfaces:
- USB (Universal Serial Bus): USB Type-A (Standard Interface)
- PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
- Wireless interface (customizable) low-power design:
- RS232 serial communication, with a long communication distance
- Other interfaces can be customized according to requirements

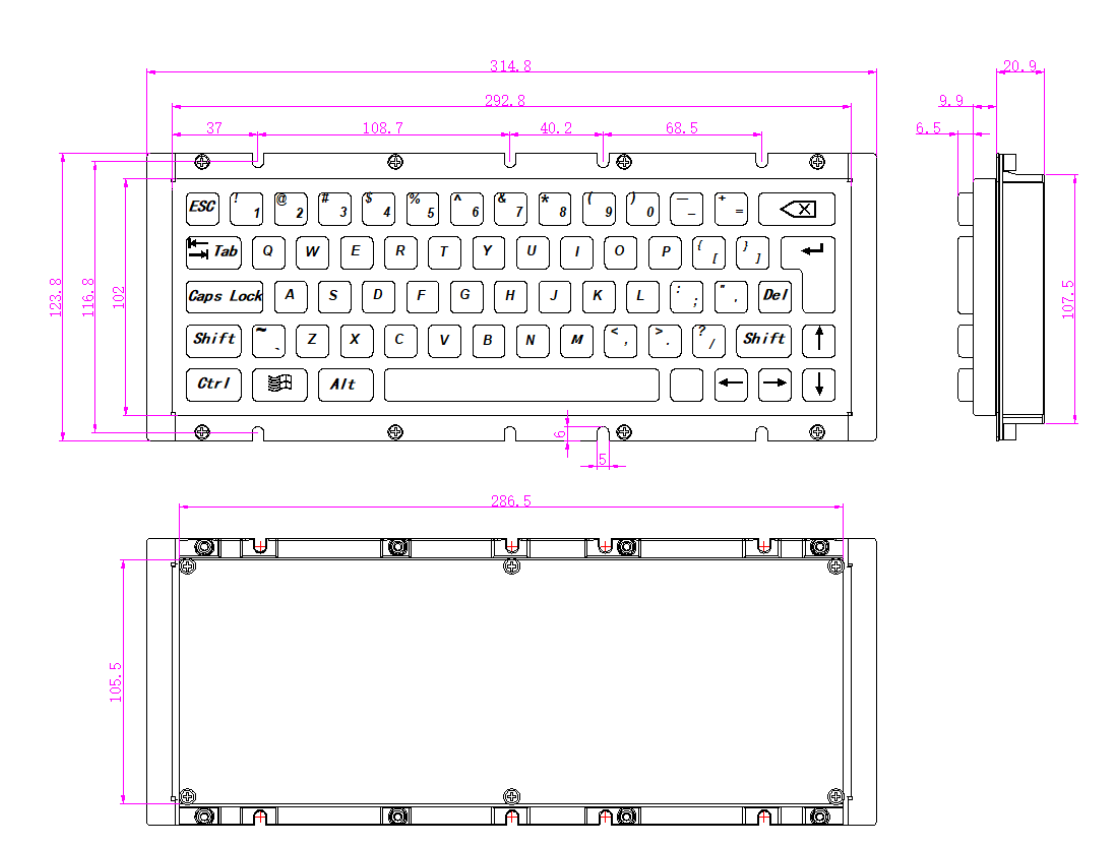

Industrial best steelseries mechanical keyboard diagram:
