Model No: KY-PC-H-BL
full size custom mechanical keyboard KY-PC-H-BL
Size:
Front panel: 372 * 116.2mm
Total dimensions: 394 * 123.8 * 30mm
features:
Black stainless steel keyboard
Installation plan: Rear panel installation
The PCB board adopts industrial immersion gold process, which is durable and long-lasting
Using mechanical switches
Stainless steel keycaps, made of 304 stainless steel
Free customization of languages and scripts for different countries
Number of keys: 63
Equipped with mechanical trackball mouse
Track ball size: 38mm
Front panel: 372 * 116.2mm
Total dimensions: 394 * 123.8 * 30mm
features:
Black stainless steel keyboard
Installation plan: Rear panel installation
The PCB board adopts industrial immersion gold process, which is durable and long-lasting
Using mechanical switches
Stainless steel keycaps, made of 304 stainless steel
Free customization of languages and scripts for different countries
Number of keys: 63
Equipped with mechanical trackball mouse
Track ball size: 38mm
Quantity :
Subscribe to our Newsletter
KY-PC-H-A is a industrial best steelseries full size custom mechanical keyboard.
This Mechanical Steel series keyboard features 65 buttons, two of which are for the left and right trackball mouse buttons. The mechanical keyboard metal keycaps are stamped from 304 stainless steel, and the mechanical switches provide a comfortable feel and fast typing.
The keyboard supports an FN key, which can be combined with the 0-9, -, and = keys to perform the functions of F1-F12. Other key combinations are also available.
A 38mm stainless steel ball is located on the right side of the custom full size mechanical keyboard to control the trackball. A 32-bit MCU quickly reads the movement trajectory, enabling precise mouse positioning.
The layout supports various languages, including French, Russian, German, English, and Spanish.

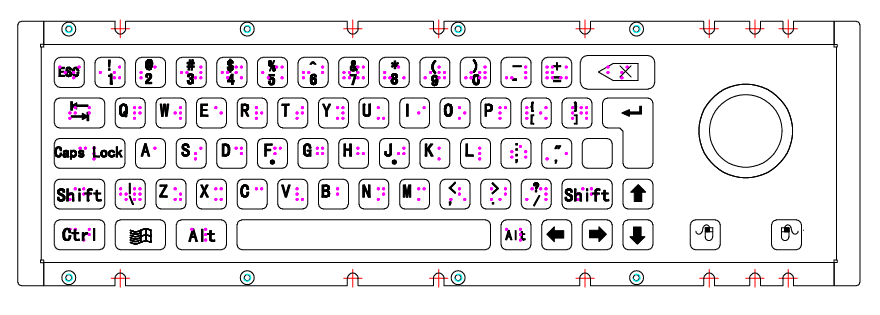

A custom Braille keyboard is available, as shown below. The mechanical keyboard metal keycaps have blind spots for use by the blind, which provide high visibility and quick reading.
y etal indu
strial keyboard touch pad
Industrial custom full size mechanical keyboard mechanical / electrical Data：
Working power | 5V±5% |
Working current | <100mA |
Durability | >2Million |
Interface | USB / PS/2 |
Compatible system | Window XP、Window 7、Window 8、Window10、Linux、Ubuntu、Android |
Key size | 14mm*14mm*8.5/23.5*14*8.5/33*14*8.5mm/118.5*14*8.5mm |
Key Trip | 4mm |
Operation force | 2N±10% |
Mounting Way | Back mounting |
Wet weight | 1.55Kg |
Gross weight | 1.75Kg |
Working temperature | -20℃~60℃（Relative humidity 20%~85% / atmospheric pressure 60~106Kpa） |
Storage Temperature | -30℃~85℃（Relative humidity 20%~90% / atmospheric pressure 60~106Kpa） |
| Approval | RoHS、IP65、FCC、CE |
Industrial full metal mechanical keyboard Application:
This mechanical keyboard metal frame has sturdy features and is very suitable for use in public sound.
- Industrial control
- medical equipment
- laboratory
- Financial and commercial self-service terminals
- pharmaceutical production
- Maritime vessels

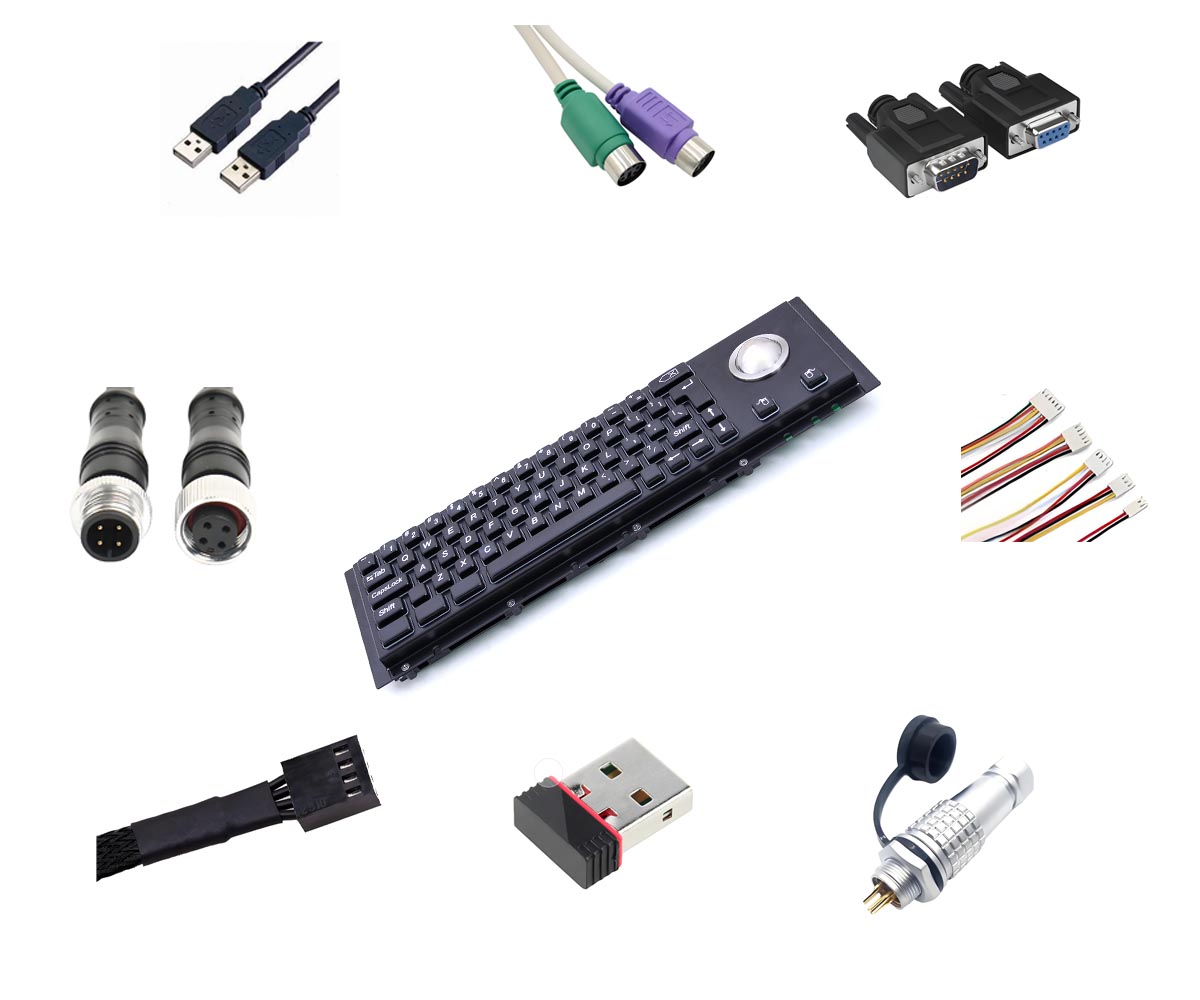

Industrial custom full size mechanical keyboard can choose different interfaces:
- USB (Universal Serial Bus): USB Type-A (Standard Interface)
- PS/2 interface: It needs to be connected before booting up (does not support hot swapping), with no delay
- Wireless interface (customizable) low-power design:
- RS232 serial communication, with a long communication distance
- Other interfaces can be customized according to requirements

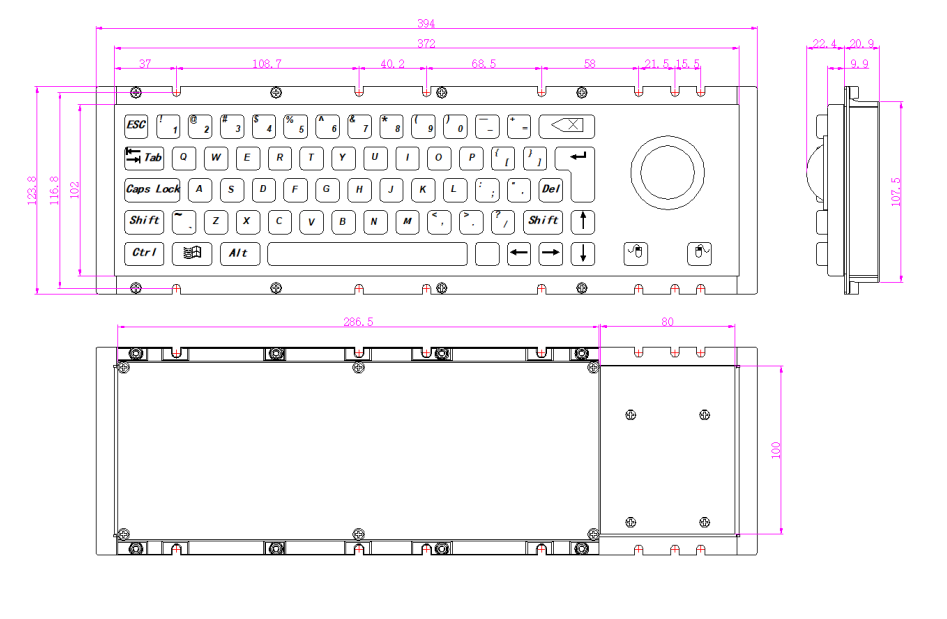

Full size custom mechanical keyboard diagram:
